Test Kit Strip Cutting Machine with Packing Machine 2000 pcs/hour
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | TW-LT001 |
| Document | GRK-TWLD01.pdf |
| Minimum Order Quantity | 1 set |
| Price | 45000~60000$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 220 V, 380 V | Power | 1.5KW |
|---|---|---|---|
| Air Pressure | 0.5~0.8MPa | Lead Time | 60-120days |
| Speed | 2000 Pcs/hour | Weight (KG) | 1200kg |
| Dimension | 2200*2100*1800mm | Warranty | 1 Year Guarantee |
| After-sales Service Provided | Service Machinery Overseas | Advantage | High Efficiency Low Cost |
| Weight | 1200kg | ||
| Highlight | Test Kit Strip Cutting Machine,Test Kit Strip Cutting Packing Machine,2000 pcs/hour Test Kit Cutting Machine |
||
Product Description

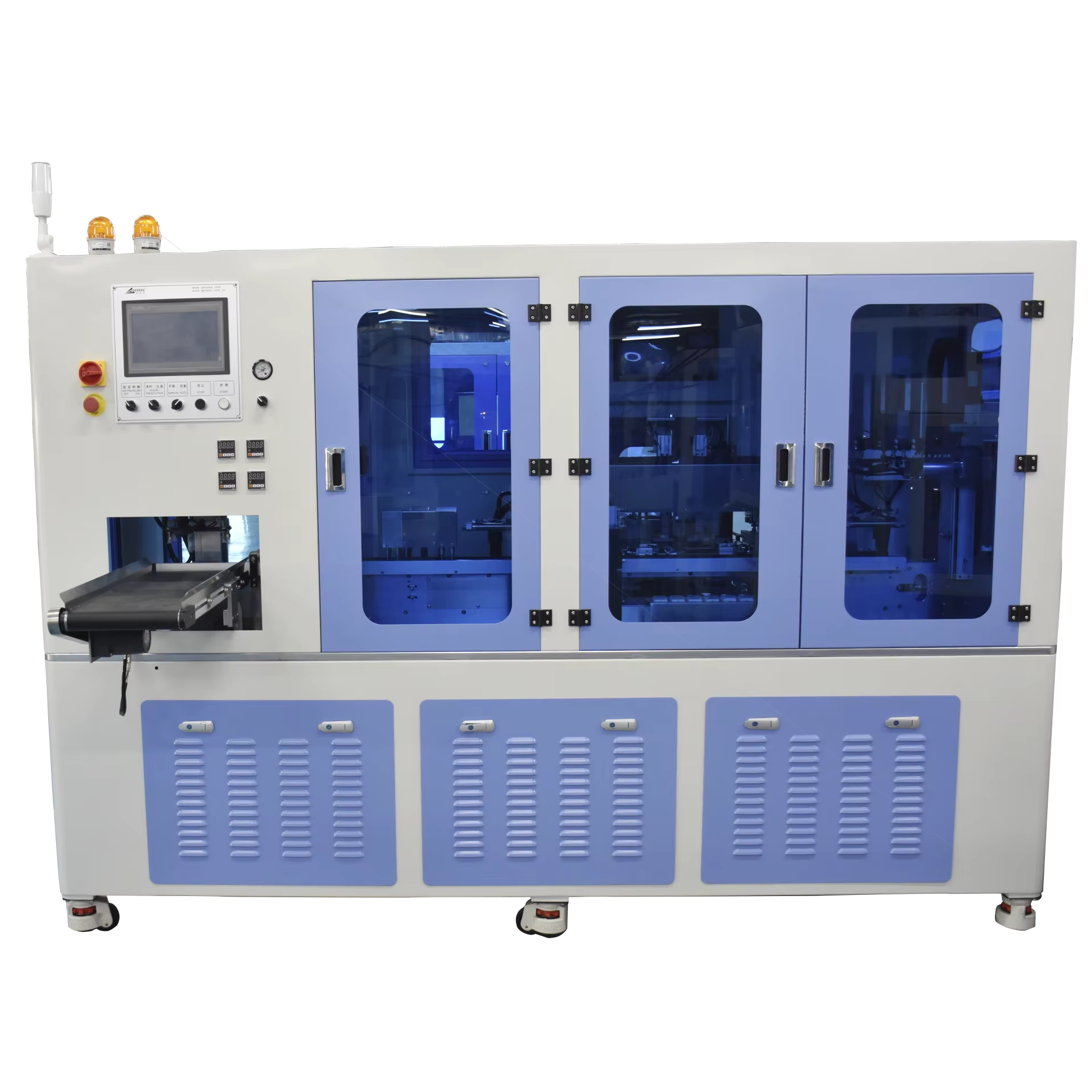

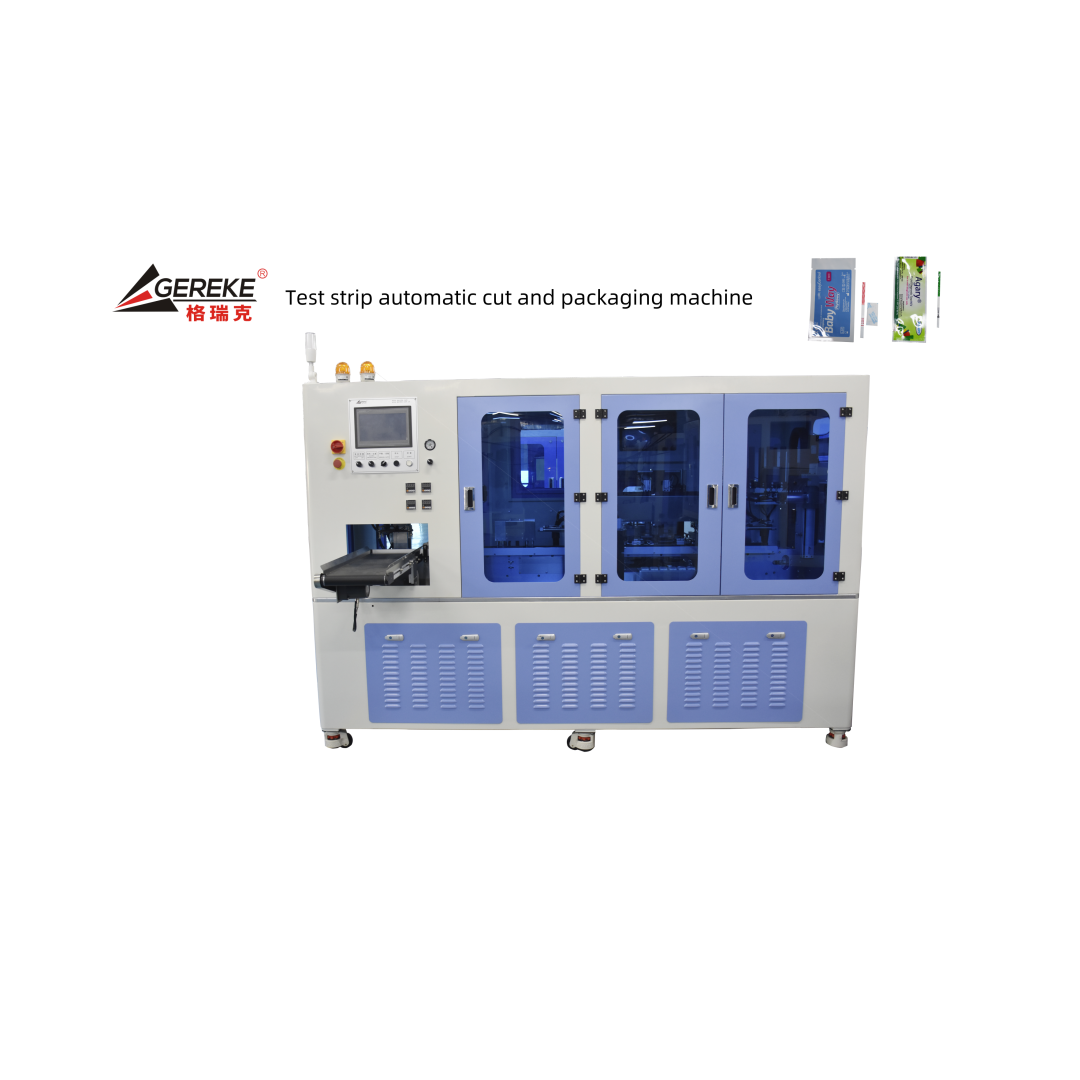

Test Kit Strip Cutting Machine and Packing Machine
Product Overview
This advanced automatic packaging machine is specifically designed for single strip test kit production, constructed from durable S45C steel for long-lasting performance in industrial environments.
Key Features
- Intelligent System: High-quality PLC system integrated with touch screen and inverter for easy operation and energy efficiency
- Machine Transmission: High-performance electronic cam transmission system for stabilized and durable operation
- Feeding System: High-performance vibrating bowl feeder
- Controlled by PLC for precise operation
- Easy operation with reduced labor requirements
- Each section equipped with check sensors for quality control
- All components sourced from international brands
Major Components Origin
| No. | Product | Producer | Origin Country |
|---|---|---|---|
| 1 | Solenoid valve | Sch | French |
| 2 | Photo sensor/fiber optic | Panic/Keyence | Japan |
| 3 | Main motor | China Taiwan, INOVANCE | China Taiwan |
| 4 | PLC | INOVANCE/Mitsu | China/Japan |
| 5 | Relay | Schder/Honey | French/USA |
| 6 | Proximity sensor | Autonics | Korea |
| 7 | Air filter | China Taiwan | China Taiwan |
| 8 | Cylinder | SMC/Air tac | Japan/China Taiwan |
| 9 | Electronic cam | Koyo | Japan |
| 10 | Inverter | Shihlin/Delta | China Taiwan |
| 11 | Stroke/rod eye | Iko, Misumi | Japan |
Assembly Sequence

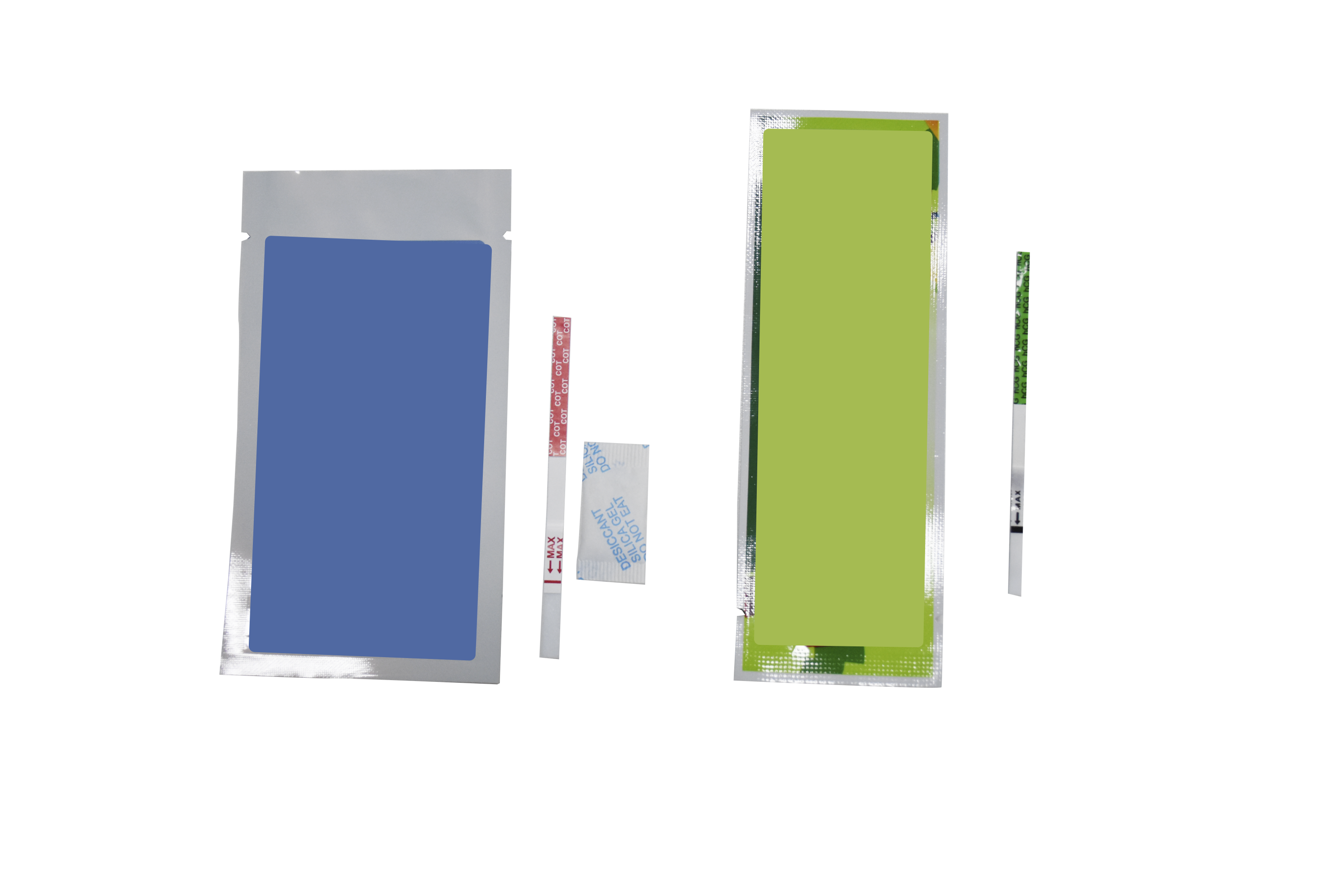

- Strip cutting
- Strip check
- Strip fitting
- Camera sensor check
- Pouch feeding and check
- Desiccant feeding and check
- Push the strip and desiccant to the pouch
- Check
- Hot sealing
- Discharge the good one
- Eject the bad one
Technical Specifications
| Voltage | 380VAC / 50HZ, 15A |
| Power | 3500W |
| Dimension | 4200 * 2100 * 1800mm |
| Weight | 2200kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 30-35 pcs/min |
| Frequency | 50Hz |
Product Application
Designed for IVD (In Vitro Diagnostic) production manufacturers in plant environments.
Frequently Asked Questions
Q: I am interested in your product, can you supply?
A: Yes, we are a professional manufacturer and exporter specializing in the design, development and production of various special filling machines, assembly machines, packing machines and related equipment.
Q: What do I need to provide documents?
A: 1. The material of your product 2. The size of your product and the pattern 3. The shape of your product
Q: What is the lead time?
A: 45-90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express
Q: Do you have the CE certification?
A: Yes, we have the CE certification
Q: What document will you provide?
A: Installation manuals, Maintenance manuals, Electrical schematics diagram. For medical machines we will provide IQ, OQ and spare part list.
Q: What is the material of your machine?
A: The majority of parts are 45# steels, while parts that contact with the product are made from stainless steel S304.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, Cash; Language Spoken: English, Chinese
