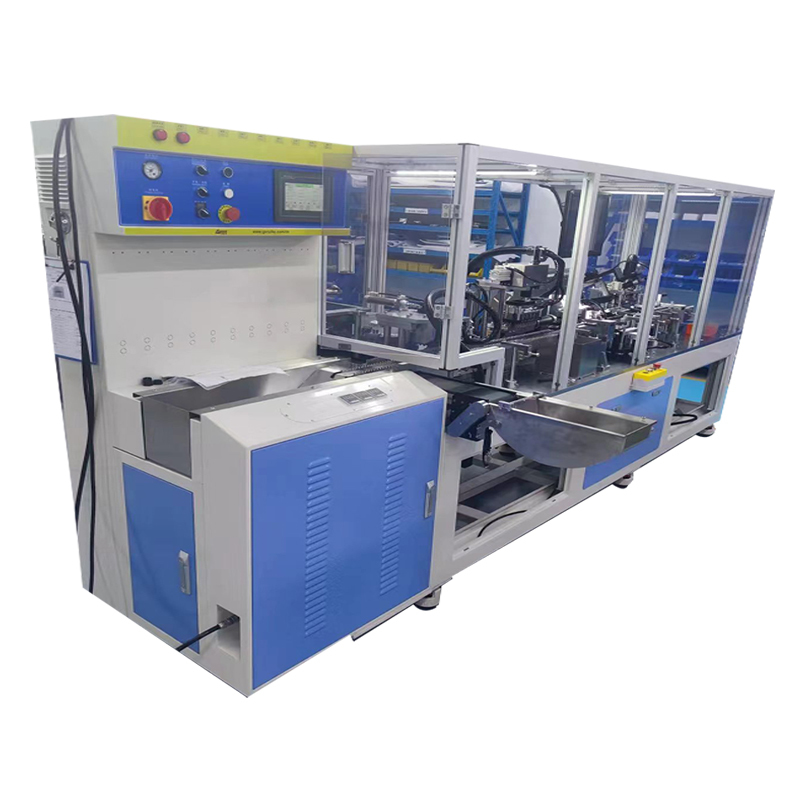

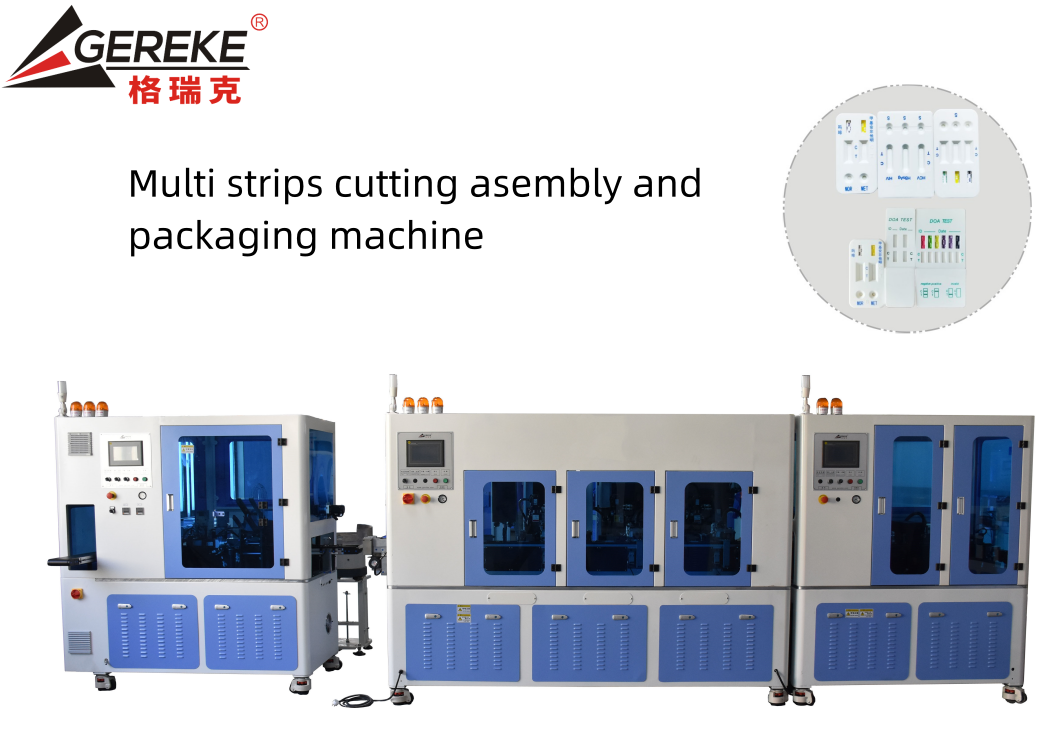

Medical Cassette Packaging Multi Windows Automatic Assembly Machine With Strip Cutting Machine

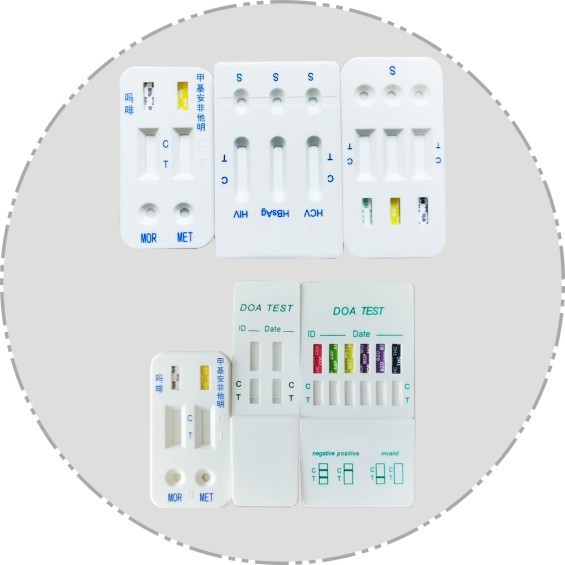

the assembly will auto feeding the base and top shell ,and through detect the exist and the shell direction ,then orientation it. After that the strip cutting machine will operate according with the detector and check the length , width and the dirty surface through camera .Then auto fitting it to the shell and pressure it .

The packaging machine will auto feed the bags ,desiccant .Then Push the cassette and desiccant to bag ,sealing it .

1. cassette base shell feed
2. 2 direction (upward and downward)check
3. Orientation for upward and downward
4. 4 direction (front and back)check
5. 5 Orientation for front and back
6. 6 strip fitting
7. 7 strip check
8. 8 cassette top shell fitting
9. 9 top shell check
10. 10 .top and base shell together and pressure
11. 11 push the finish production to the conveyor
12. 12 push the cassette to packaging machine
13. 13 cassette check
14. 14 bag feeding
15. 15 bag check
16. 16 desiccant feeding
17. desiccant check
18. 17 open the bag
19. 18 push the cassette and desiccant to the bag
20. 19 check it
21. 20 Sealing the bag
22. 21 defect part ejection
23. 22 Discharge for the good production

Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical product range. We have established a strong team of capable staff who concentrate on their own area of expertise. Gereke carries out customizations professionally according to the user’s needs. The entire process from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and rigorous test on the quality and performance of the machinery to ensure that the internationally advanced standards of the product are there. The excellence in quality and performance has won the complete trust of many customers.
