Pregnancy Test Kit Assembly And Packing Machine With Cutting Machine
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | TW01Z |
| Document | GRK-pregnant test kit assem...l).pdf |
| Minimum Order Quantity | 1 set |
| Price | 85000~105000$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380V 50HZ 3 PHASE | Power | 3000 W |
|---|---|---|---|
| Air Pressure | 0.5~0.8MPa | Lead Time | 90 Days |
| Operating Speed | 1800-2000 Pcs/hour | Weight (kg) | 1500 KG |
| Dimension | 4200*2100*1800mm | Warranty | 1 Year Guarantee |
| After Warranty Service | Service Machinery Overseas | Key Selling Points | High Efficiency |
| Highlight | Pregnancy Test Kit Assembly Machine,Pregnancy Test Assembly And Packing Machine,Pregnancy Test Kit Packing Machine |
||
Product Description
Products Description

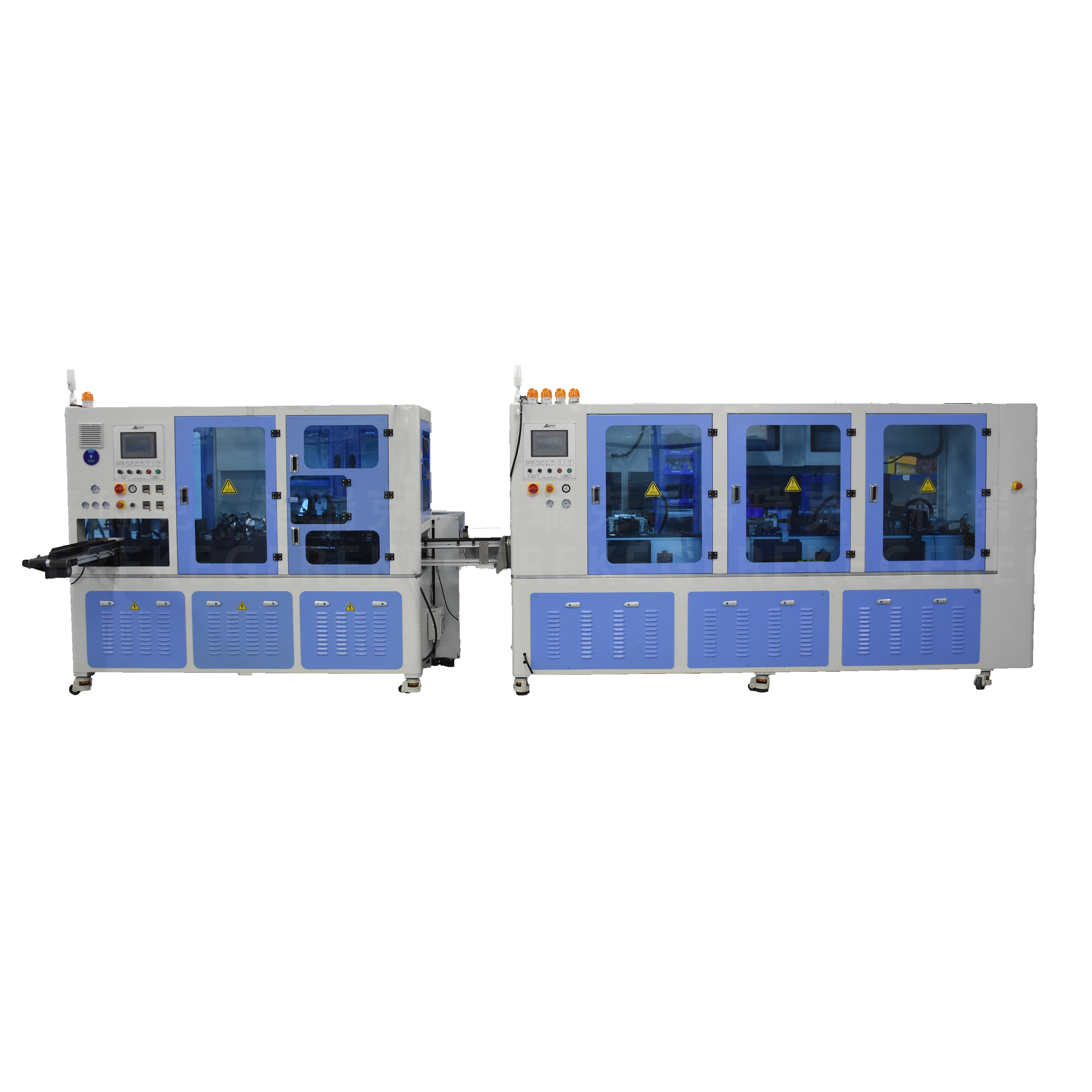

Assembly and Packing Machine (with cut machine) of Pregnancy test Kit
the assembly will auto feeding the base and top shell ,and through detect the exist and the shell direction ,then orientation it. After that the strip cutting machine will operate according with the detector and check the length , width and the dirty surface through camera .Then auto fitting it to the shell and pressure it .

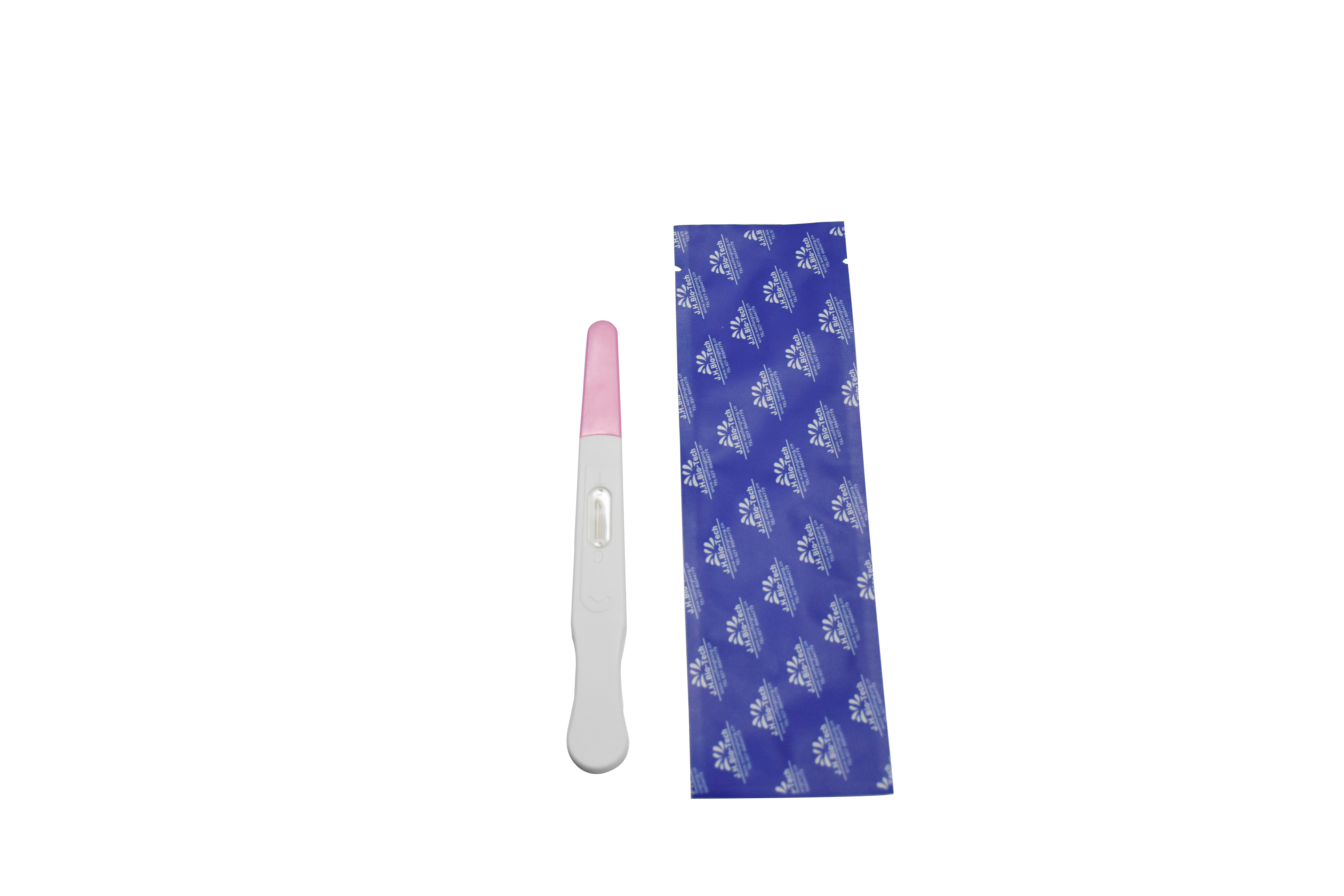

The packaging machine will auto feed the bags ,desiccant .Then Push the cassette and desiccant to bag ,sealing it .
Manufacturing Technique
- cassette base shell feed
- direction (upward and downward)check
- Orientation for upward and downward
- direction (front and back)check
- Orientation for front and back
- strip fitting
- strip check
- cassette top shell fitting
- top shell check
- top and base shell together and pressure
- push the finish production to the conveyor
- push the cassette to packaging machine
- cassette check
- bag feeding
- bag check
- desiccant feeding
- desiccant check
- open the bag
- push the cassette and desiccant to the bag
- check it
- Sealing the bag
- defect part ejection
- Discharge for the good production
Product Paramenters
| Voltage | 380VAC /50HZ,15A |
| Power | 3000W |
| Dimension | 4200*2100*1800mm |
| Weight | 2200kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 2000 pcs/H |
| Frequency | 50hz |
