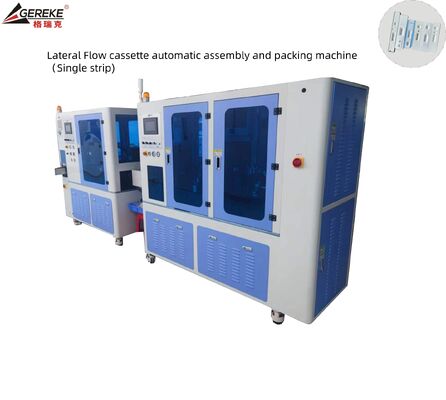

S45C Steel Automatic Assembly Machine For Single Strip Test Kit Packaging
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | GRK-TW01(Single Rail).pdf |
| Minimum Order Quantity | 1 set |
| Price | $60000~65000 |
| Packaging Details | Wooden |
| Delivery Time | 90~120 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380 V, 220 V | Power | 3500W |
|---|---|---|---|
| Air Pressure | 0.5~0.8MPa | Operating Speed | 30-35 Pcs/min |
| Lead Time | 90-120days | Weight (KG) | 2200kg |
| Dimension | 4200*2100*1800mm | Warranty | 1 Year Guarantee |
| After-sales Service Provided | Service Machinery Overseas | Advantage | High Efficiency Low Cost |
| Highlight | S45C Steel Automatic Assembly Machine,Single Strip Test Kit Packaging Machine,Test Kit Automatic Assembly Machine |
||
Product Description

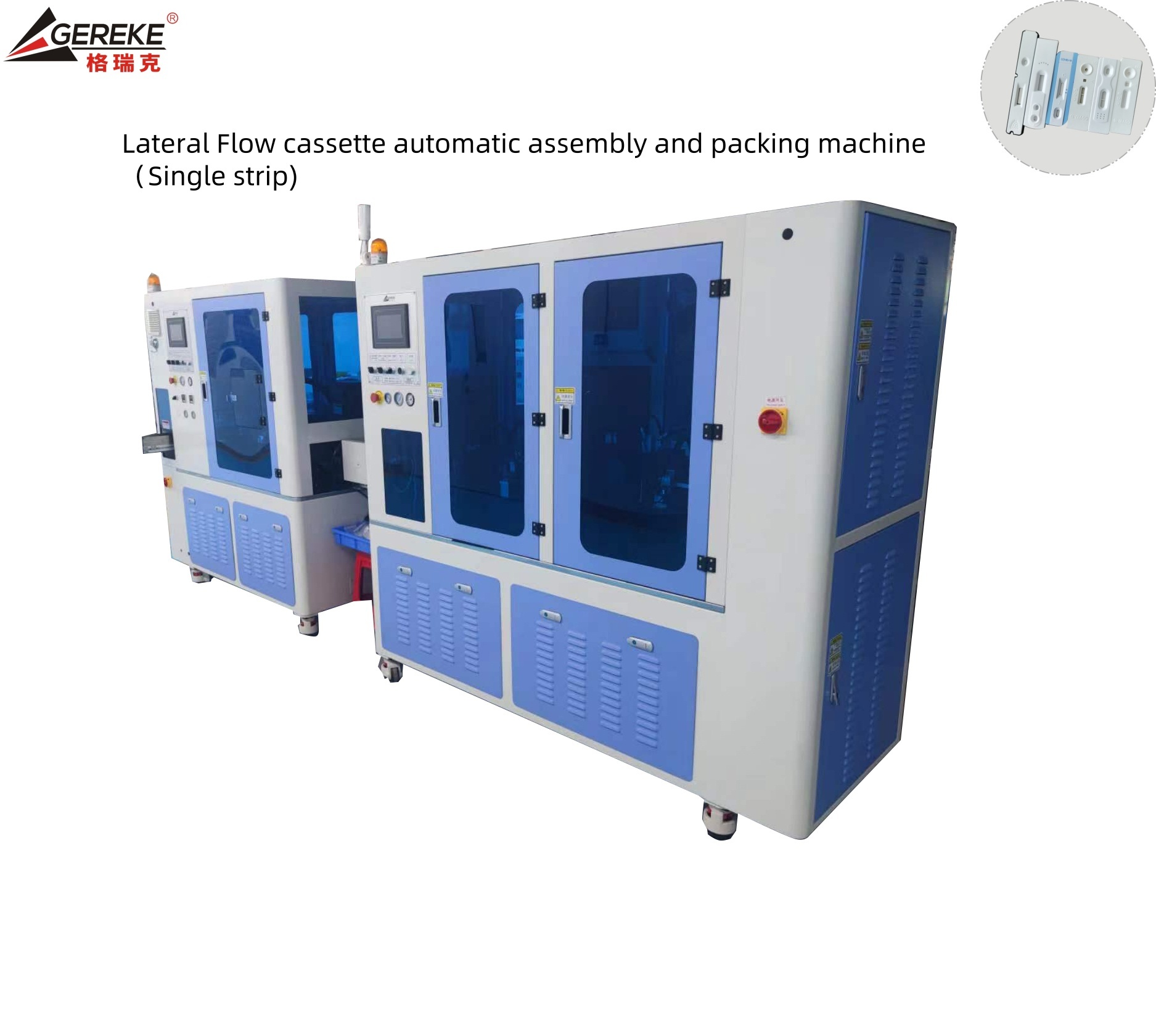

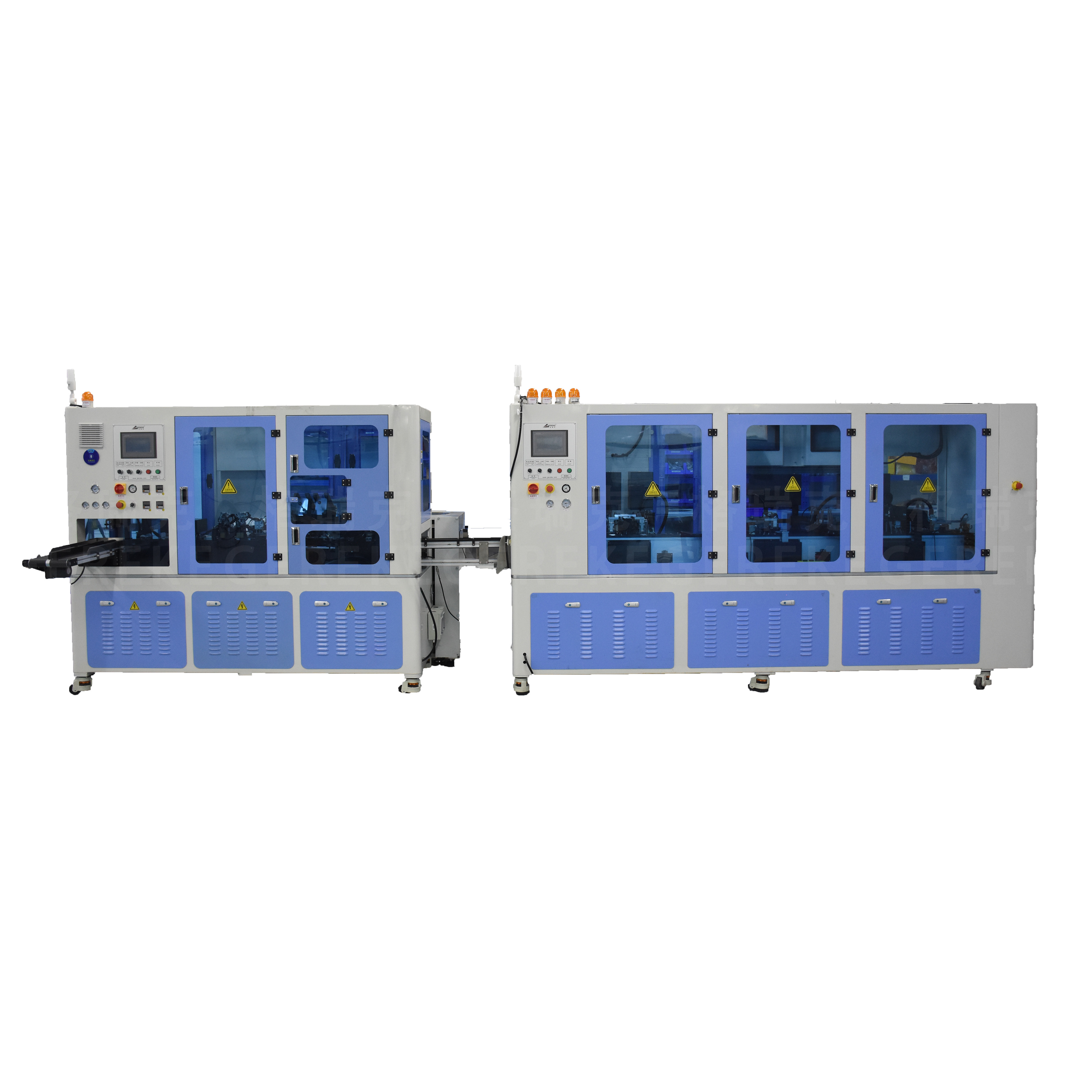

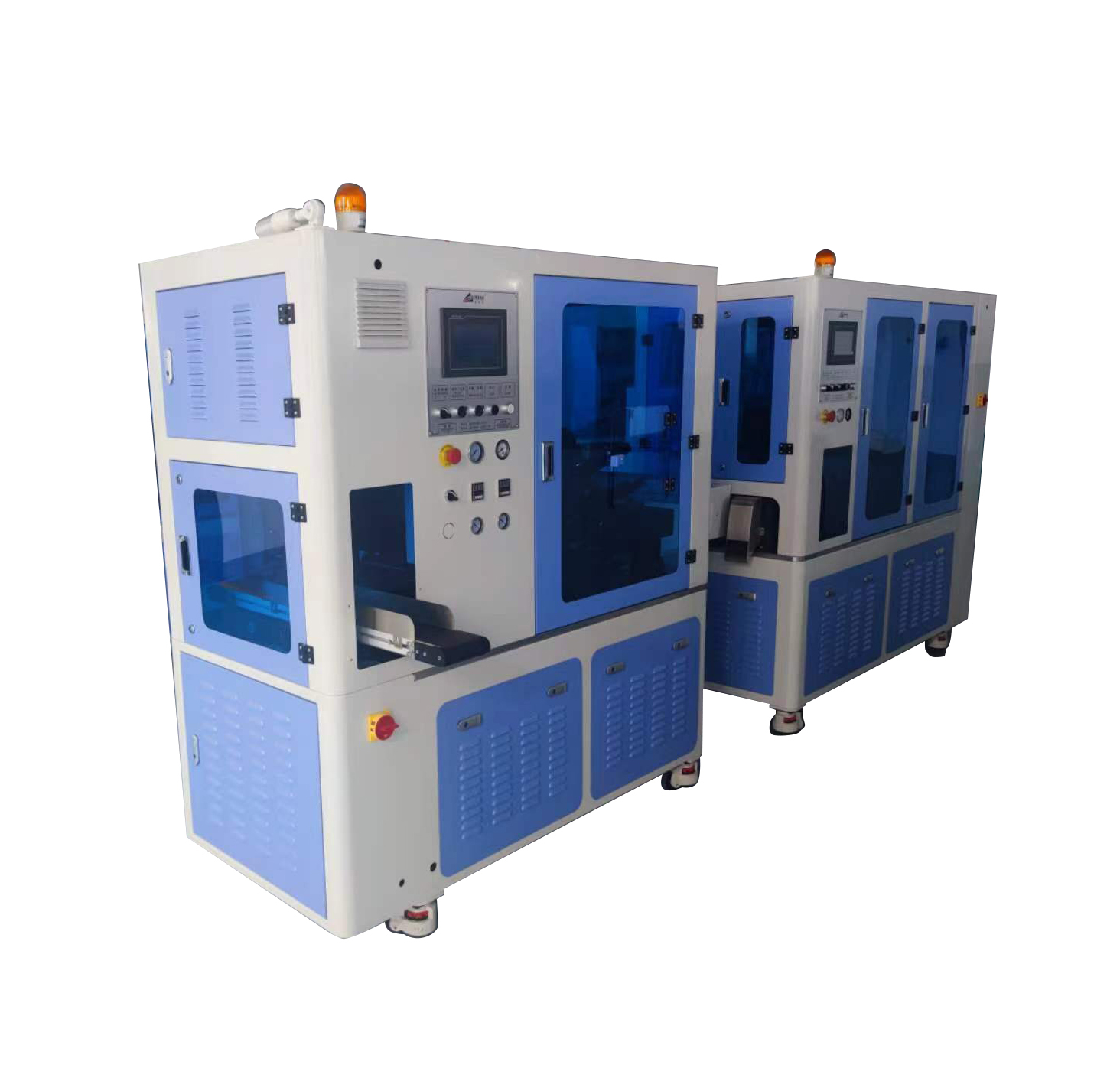

Single Strip Test Kit Automatic Packaging Machine
Product Overview
This advanced automatic packaging machine is specifically designed for single strip test kit production, constructed from durable S45C steel for long-lasting performance in industrial environments.
Key Features
- Intelligent System: High-quality PLC system integrated with touch screen and inverter for easy operation and energy efficiency
- Machine Transmission: High-performance electronic cam transmission system for stabilized and durable operation
- Feeding System: High-performance vibrating bowl feeder
- Controlled by PLC for precise operation
- Easy operation with reduced labor requirements
- Each section equipped with check sensors for quality control
- All components sourced from international brands
Major Components Origin
| No. | Product | Producer | Origin Country |
|---|---|---|---|
| 1 | Solenoid valve | Sch | French |
| 2 | Photo sensor/fiber optic | Panic/Keyence | Japan |
| 3 | Main motor | China Taiwan, INOVANCE | China Taiwan |
| 4 | PLC | INOVANCE/Mitsu | China/Japan |
| 5 | Relay | Schder/Honey | French/USA |
| 6 | Proximity sensor | Autonics | Korea |
| 7 | Air filter | China Taiwan | China Taiwan |
| 8 | Cylinder | SMC/Air tac | Japan/China Taiwan |
| 9 | Electronic cam | Koyo | Japan |
| 10 | Inverter | Shihlin/Delta | China Taiwan |
| 11 | Stroke/rod eye | Iko, Misumi | Japan |
Assembly Sequence
Cassette (top and bottom) feeding → Cassette present check → Cassette up and down check → Cassette turn over → Cassette forward and backward check → Cassette orientation → Strip cutting → Strip check → Strip fitting → Camera sensor check → Shift the top cassette to the bottom cassette → Press → Camera sensor check → Eject the bad one → Push the good one to the transfer belt → Cassette feeding → Pouch feeding and check → Desiccant feeding and check → Push the cassette and desiccant to the pouch → Check → Hot sealing → Discharge the good one → Eject the bad one
Technical Specifications
Voltage: 380VAC / 50HZ, 15A
Power: 3500W
Dimension: 4200 × 2100 × 1800mm
Weight: 2200kg
Air Pressure: 0.5~0.8MPa
Operating Speed: 30-35 pcs/min
Frequency: 50Hz
Product Application
Designed for IVD (In Vitro Diagnostic) production manufacturers in plant environments.
Frequently Asked Questions
Q: I am interested in your product, can you supply?
A: Yes, we are a professional manufacturer and exporter specializing in the design, development and production of various special filling machines, assembly machines, packing machines and related equipment.
Q: What do I need to provide documents?
A: 1. The material of your product 2. The size of your product and the pattern 3. The shape of your product
Q: What is the lead time?
A: 45-90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express
Q: Do you have the CE certification?
A: Yes, we have the CE certification
Q: What document will you provide?
A: Installation manuals, Maintenance manuals, Electrical schematics diagram. For medical machines we will provide IQ, OQ and spare part list.
Q: What is the material of your machine?
A: The majority of parts are 45# steels, while parts that contact with the product are made from stainless steel S304.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, Cash; Language Spoken: English, Chinese
