Automatic Filling Marker Pen Assembly Machine for Stationery Permanent Pen
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | L580 |
| Document | stationery pens automatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | 35000~45000 usd |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 220/380V | KVA | 1.5 Kw |
|---|---|---|---|
| Pneumatic | 5-6kgf/m2 | Lead Time | 90-150days |
| Weight (kg) | 2000KG | Dimensions | 3400mm*1400mm*1800mm(L*W*H) |
| Warranty | 1 Year | Operating Rate | 50-60pcs/min |
| After-sales Service Provided | Service Machinery Overseas | Advantage | High Efficiency Low Cost |
| Highlight | Permanent Marker Pen Assembly Machine,Marker Pen Making Equipment,Stationery Marker Pen Assembly Machine |
||
Product Description
Products Description

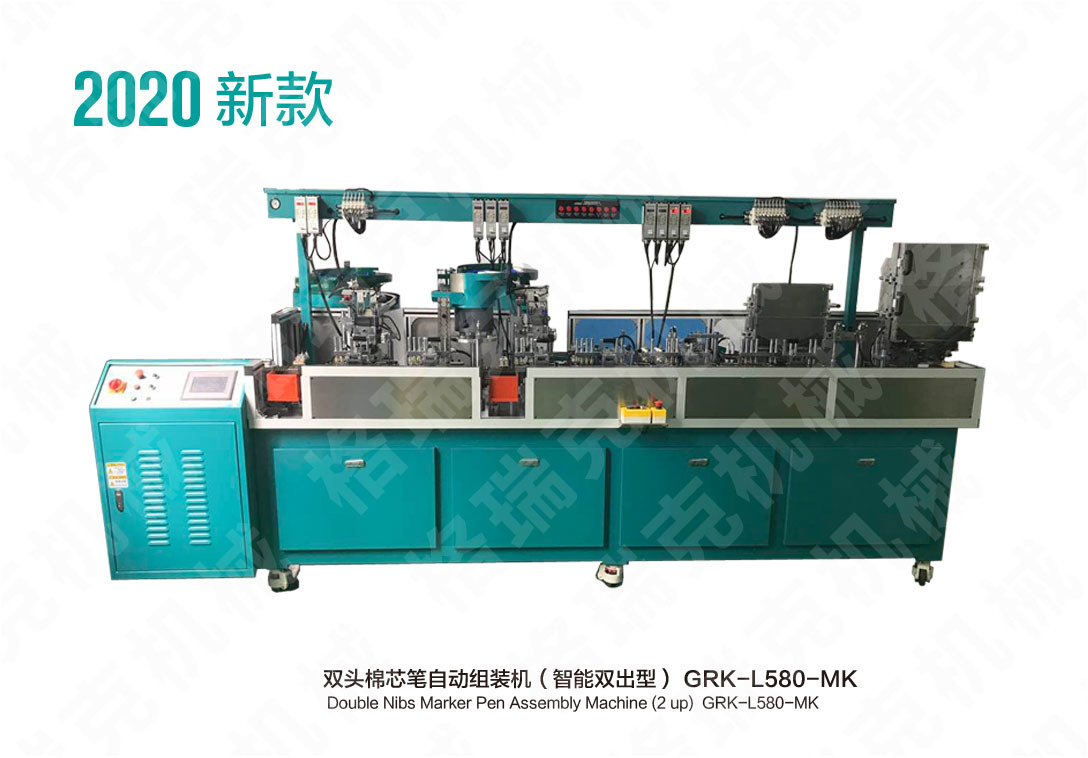

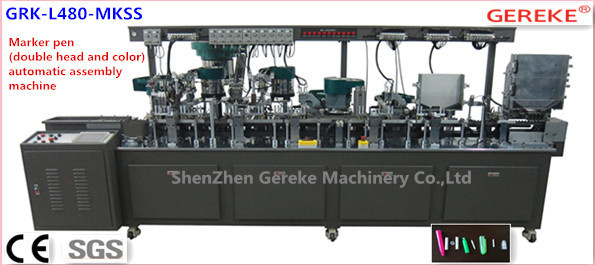

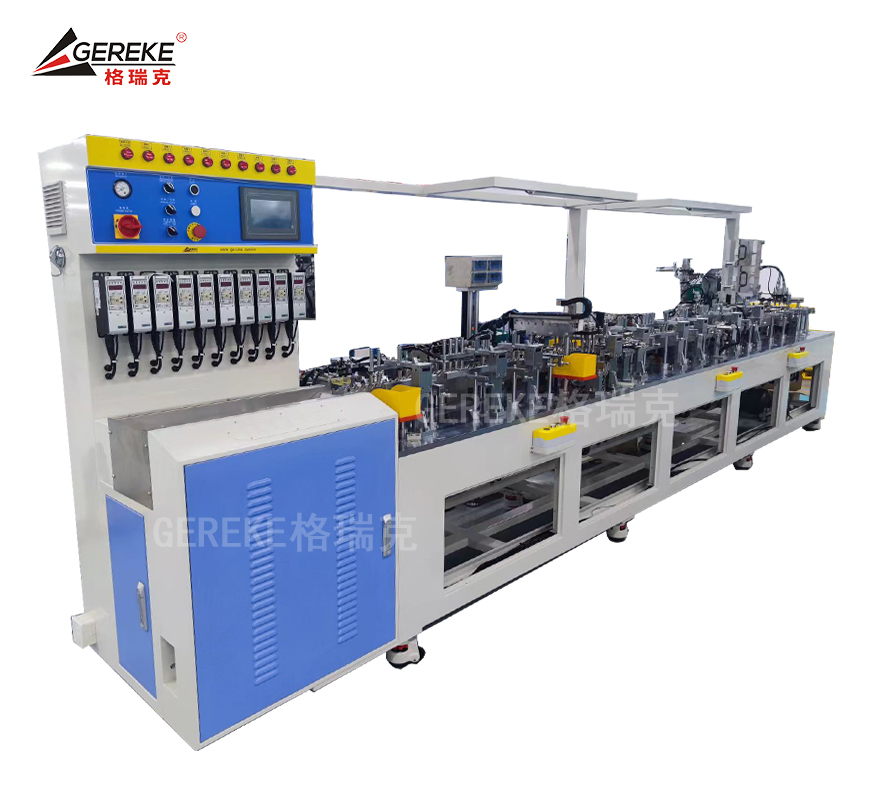

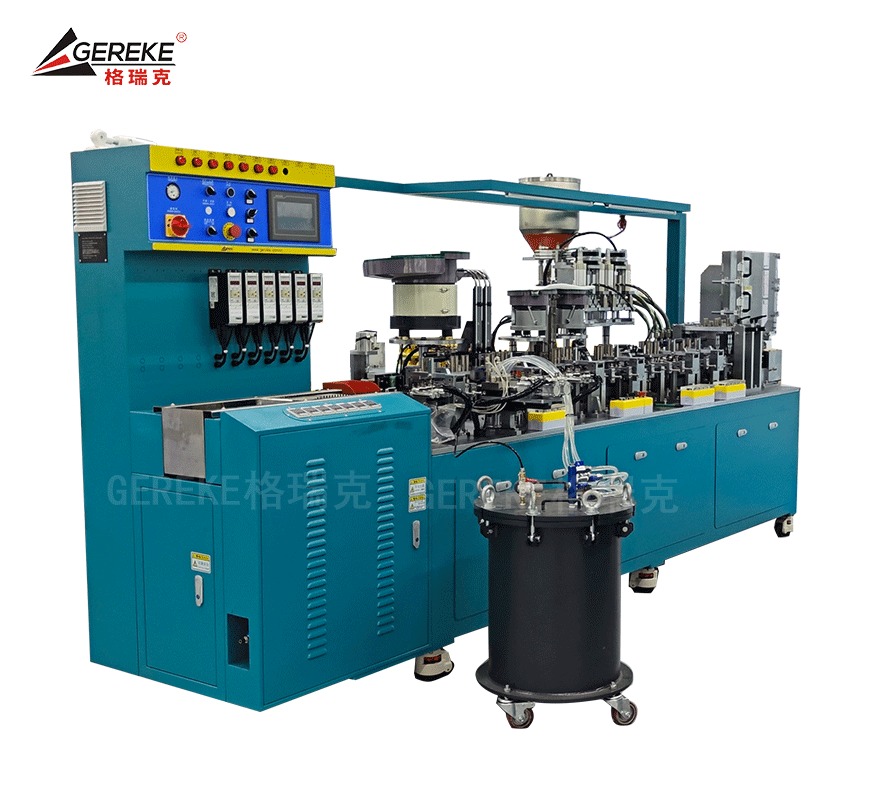

Marker pen Automatic assembly and filling Machine - Stationery machine
the assembly will auto feeding the barrel , reservoir cone ,end plug and cap ,and automatic through detect the exist and the direction ,then automatic assembly together .
Manufacturing Technique
- barrel feeding
- barrel check
- end plug fitting
- end plug check
- Orientation
- reservoir feeding
- reservoir check
- ink filling
- ink check
- cone fitting
- cone check
- cap fitting
- cap check and pressure
- discharge for the good production
- defect part ejection
Product Paramenters
| Voltage | 380VAC /50HZ,15A |
|---|---|
| Power | 3000W |
| Dimension | 3000*1500*1800mm |
| Weight | 1800kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 60-65 pcs/min |
| Frequency | 50hz |
Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical
product range. We have established a strong team of capable staff who concentrate on their own area of ex
pertise. Gereke carries out customizations professionally according to the user’s needs. The entire process
from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and
rigorous test on the quality and performance of the machinery to ensure that the internationally advanced st
andards of the product are there. The excellence in quality and performance has won the complete trust of
many customers.
