Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine

  • Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
  • Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
  • Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
  • Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
  • Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
  • Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
Place of Origin China
Brand Name Gereke
Certification CE ISO90001
Minimum Order Quantity 1 set
Packaging Details Wooden
Delivery Time 90~150 days
Payment Terms TT
Supply Ability 10 PCS
Product Details
Weight (kg) 2000 Video Outgoing-inspection Provided
Machinery Test Report Provided Core Components PLC, Gearbox, Motor, Pump
Warranty 1 Year Key Selling Points High-Accuracy
After-sales Service Provided Field Maintenance And Repair Service After Warranty Service Field Maintenance And Repair Service
Local Service Location None Type Assembly And Packing
Application Blood Test Kit Inspection Key Word Pen Making Machine
Condition New Showroom Location United Kingdom, United States, Germany, Mexico
Marketing Type New Product 2020 Warranty Of Core Components 1 Year
Applicable Industries Manufacturing Plant, Other
Highlight

Big Nib Marker Pen Assembly Machinery

,

Automatic Marker Pen Assembly Machinery

,

Stationery Pen Filling Machine
Leave a Message
Product Description
Products Description

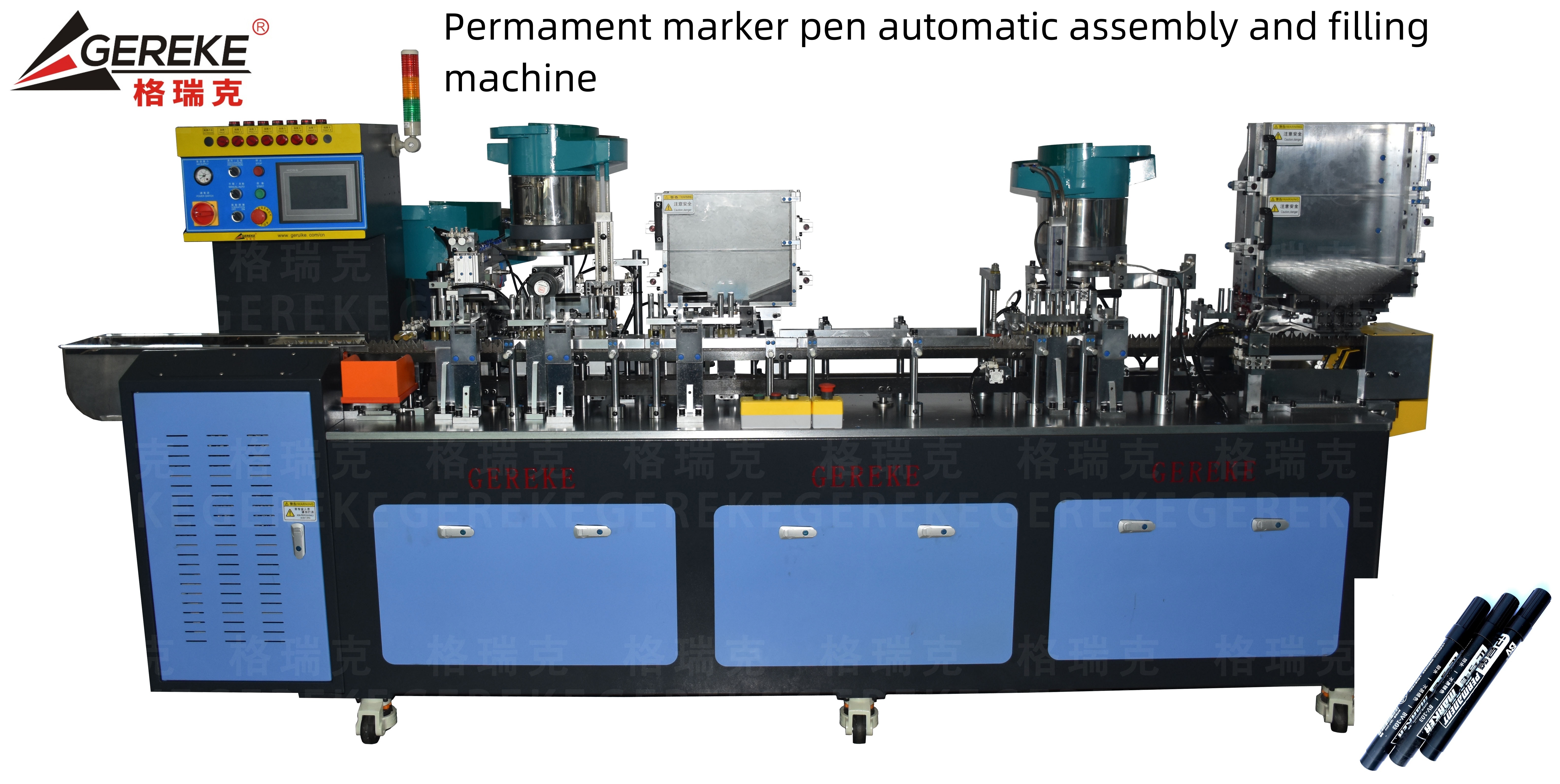

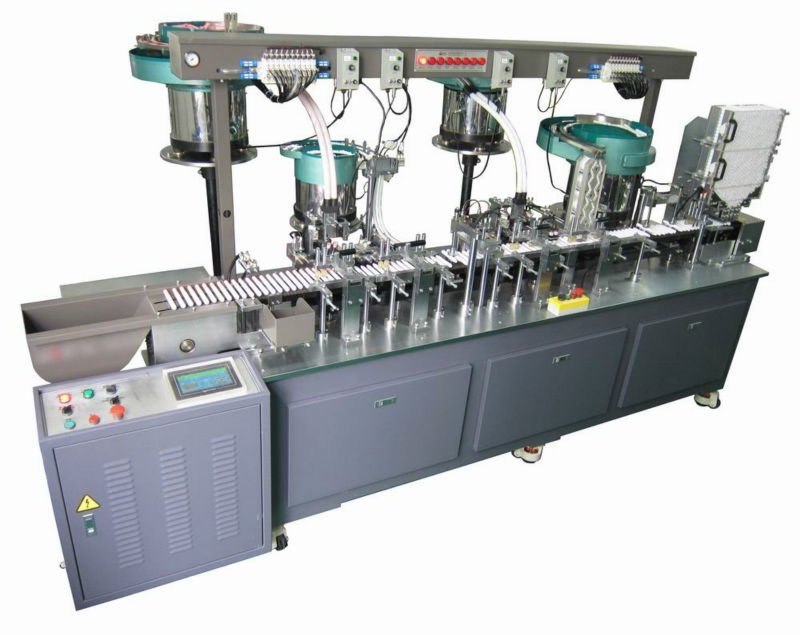

Gereke Stationery Pen Equipment-Automatic Big nib Marker Pen assembly machine and filling Machine

the assembly will auto feeding the barrel , reservoir cone ,end plug and cap ,and automatic through detect the exist and the direction ,then automatic assembly together .
Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
Manufacturing Technique
1,barrel feeding ->2 barrel check ->3 end plug fitting->4 end plug check->5 Orientation->6 reservoir feeding ->7 reservoir check->8 ink filling ->9 ink check->10 cone fitting->11 cone check->10 cap fitting ->12 cap check and pressure->13 discharge for the good production->14 defect part ejection
Product Paramenters
Voltage
380VAC /50HZ,15A



Power
3000W



Dimension
3000*1500*1800mm



Weight
1800kg



Air Pressure
0.5~0.8MPa



Operating Speed
60-65 pcs/min



Frequency
50hz



Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical
product range. We have established a strong team of capable staff who concentrate on their own area of ex
pertise. Gereke carries out customizations professionally according to the user’s needs. The entire process
from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and
rigorous test on the quality and performance of the machinery to ensure that the internationally advanced st
andards of the product are there. The excellence in quality and performance has won the complete trust of
many customers.
Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
Customer Photos
Automatic Big Nib Marker Pen Assembly Machinery Stationery Pen Filling Machine
