Paint Pen Making Machine Automatic Assembly Filling
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | stationery pens automatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | $95000~105000 |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380/220 VAC /50HZ，15A，3 Phase | Power | 3000W |
|---|---|---|---|
| Air Pressure | 0.5~0.8MPa | Operating Speed | 50-60 Pcs/min |
| Lead Time | 90-150days | MOQ | 1 SET |
| Weight | 2100kg | Dimension | 3000*1500*1800mm |
| Warranty | One Year | After-sales Service Provided | Service Machinery Overseas |
| Highlight | Paint Pen Making Machine,Automatic Pen Making Machine,Paint Pen Making Equipment |
||
Product Description
Products Description

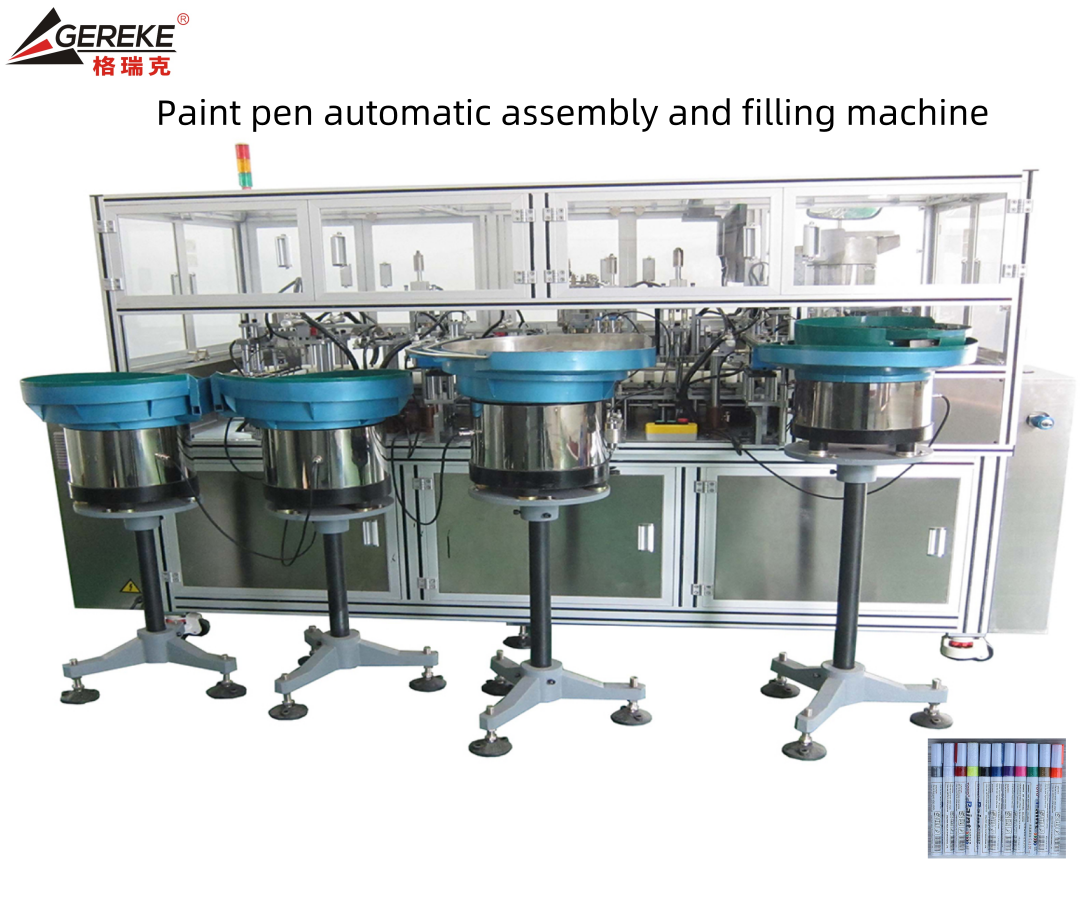

Paint Pen Automatic Assembly And Filling Machine
the assembly will auto feeding the barrel , ink ,nozzle valve nib&spone and cap ,and automatic through detect the exist and the direction ,then automatic assembly together .
Manufacturing Technique
- barrel feeding
- barrel check
- ink filling
- ink check
- valve feeding
- valve check
- nib&spone feeding
- nib&spone check
- nozzle feeding
- nozzle check
- shift the nozzle to the barrel
- cap fitting
- cap check and rotation
- discharge for the good production
- defect part ejection
Product Paramenters
| Voltage | 380VAC /50HZ,15A |
| Power | 3000W |
| Dimension | 3000*1500*1800mm |
| Weight | 2200kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 60-65 pcs/min |
| Frequency | 50hz |
Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical product range. We have established a strong team of capable staff who concentrate on their own area of expertise. Gereke carries out customizations professionally according to the user’s needs. The entire process from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and rigorous test on the quality and performance of the machinery to ensure that the internationally advanced standards of the product are there. The excellence in quality and performance has won the complete trust of many customers.
Customer Photos
FAQ
Q: I am interested in your product,can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on. Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/ Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram -For medical machine we will provide IQ, OQ - Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
