Automatic Medical Device Assembly Machine for Blood Lancet 3.5KW
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | T580 |
| Document | Medical ficility autmatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | 95000~110000$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 220 V, 380 V | Power (kw) | 3.5KW |
|---|---|---|---|
| Pneumatic | 5-6kgf/m2 | Lead Time | 90-120days |
| Operating Rate | 50-60 Pcs/min | Weight (kg) | 2000 KG |
| Dimension(L*W*H) | 5.0mx1.5mx1.8m | Warranty | 1 Year Guarantee |
| After-sales Service Provided | Service Machinery Overseas | Advantage | High Efficiency Low Cost |
| Highlight | Blood Lancet Automatic Assembly Machine,Automatic Medical Device Assembly Machine,3.5KW Medical Device Assembly Machine |
||
Product Description
Products Description

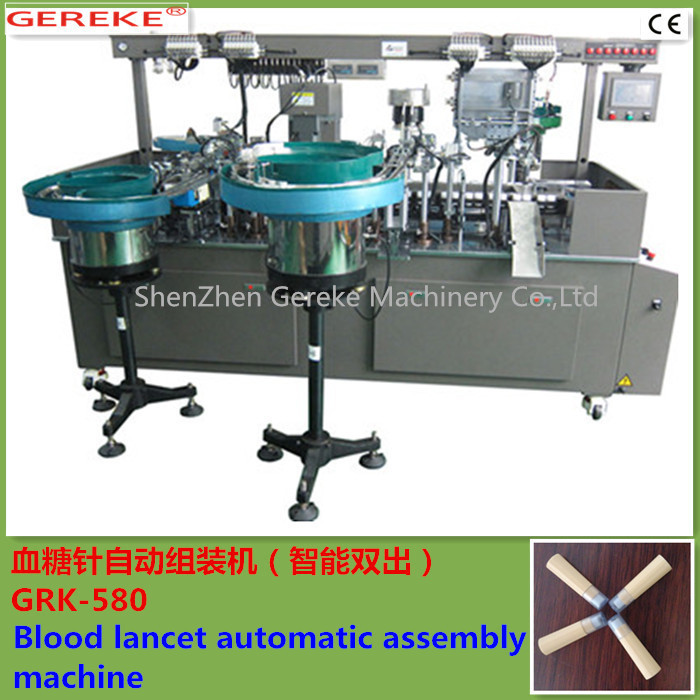

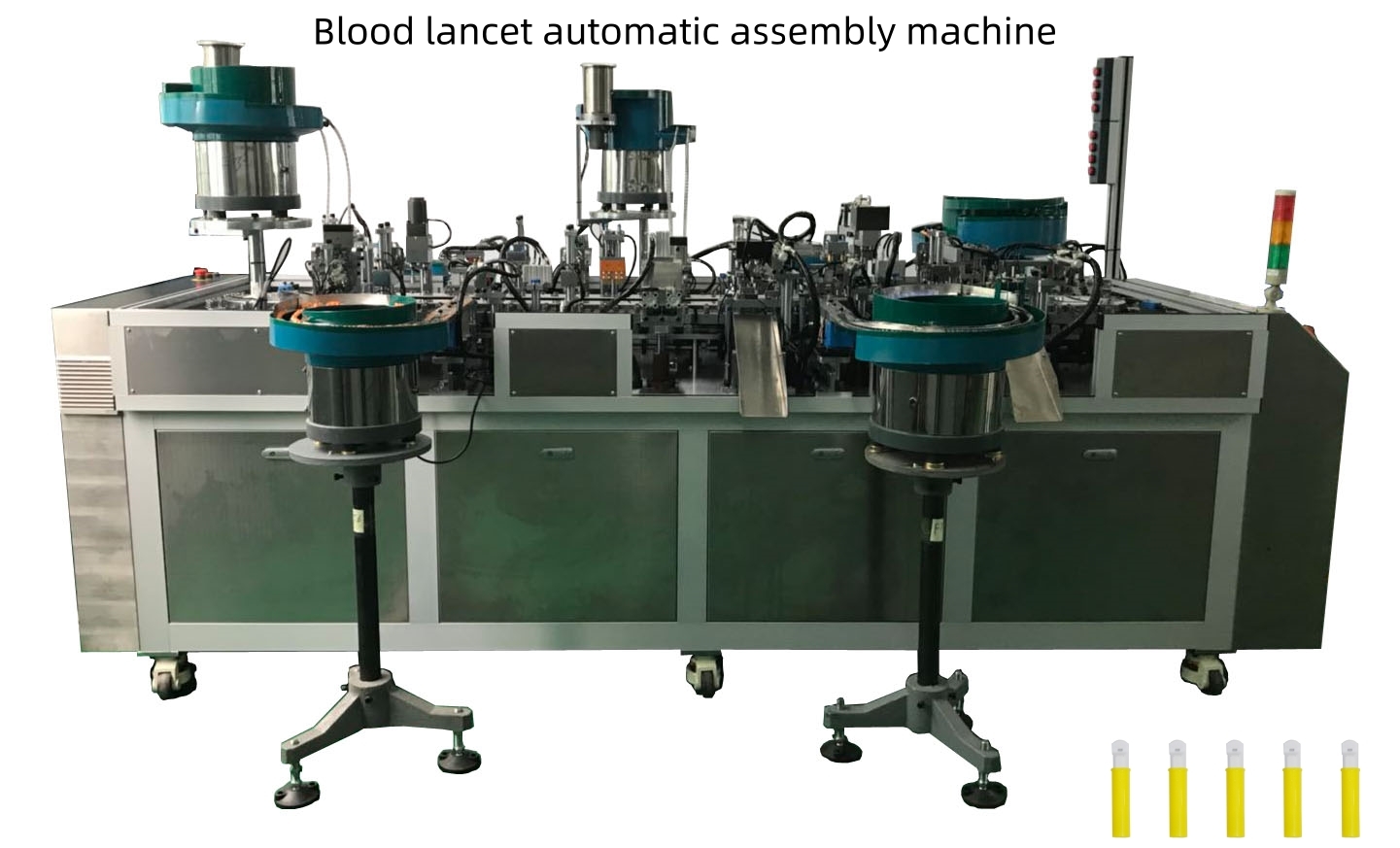

Professional blood lancet automatic assembly machine
the assembly will auto feeding the base and top shell ,and through detect the exist and the shell direction ,then orientation it. After that the strip cutting machine will operate according with the detector and check the length , width and the dirty surface through camera .Then auto fitting it to the shell and pressure it .

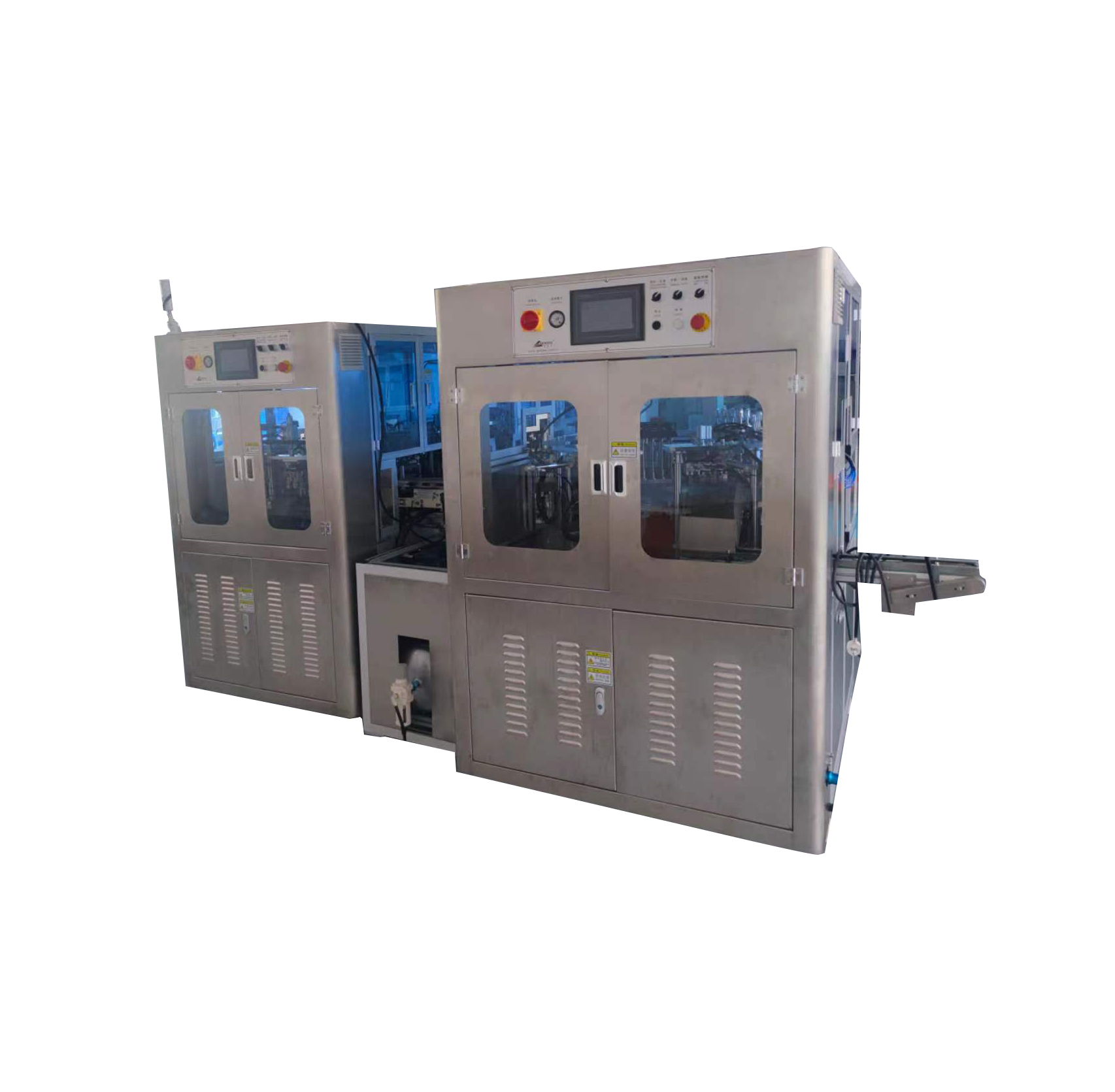

The packaging machine will auto feed the bags ,desiccant .Then Push the cassette and desiccant to bag ,sealing it .
Manufacturing Technique
- cassette base shell feed
- direction (upward and downward)check
- Orientation for upward and downward
- direction (front and back)check
- Orientation for front and back
- strip fitting
- strip check
- cassette top shell fitting
- top shell check
- top and base shell together and pressure
- push the finish production to the conveyor
- push the cassette to packaging machine
- cassette check
- bag feeding
- bag check
- desiccant feeding
- desiccant check
- open the bag
- push the cassette and desiccant to the bag
- check it
- Sealing the bag
- defect part ejection
- Discharge for the good production
Product Paramenters
| Voltage | 380VAC /50HZ,15A |
| Power | 3000W |
| Dimension | 3000*2100*1800mm |
| Weight | 2200kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 60-65 pcs/min |
| Frequency | 50hz |
Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical product range. We have established a strong team of capable staff who concentrate on their own area of expertise. Gereke carries out customizations professionally according to the user’s needs. The entire process from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and rigorous test on the quality and performance of the machinery to ensure that the internationally advanced standards of the product are there. The excellence in quality and performance has won the complete trust of many customers.
