Marker Pen Automatic Assembly Machine With Single Nib
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | stationery pens automatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | $35,000~45000 |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380 V, 220 V | KVA | 1.5KW |
|---|---|---|---|
| Operating Rate | 50-60pcs/min | Pneumatic | 5-6kgf/cm2 |
| Lead Time | 90-120days | Weight (KG) | 2000KG |
| Dimensions | 3800*1000*1600mm | After-sales Service Provided | Service Machinery Overseas |
| Warranty | 1 Year Guarantee | Advantage | High Efficiency Low Cost |
| Highlight | Single Nib Marker Pen Machine,Marker Pen Automatic Assembly Machine,Single Nib Assembly Equipment |
||
Product Description

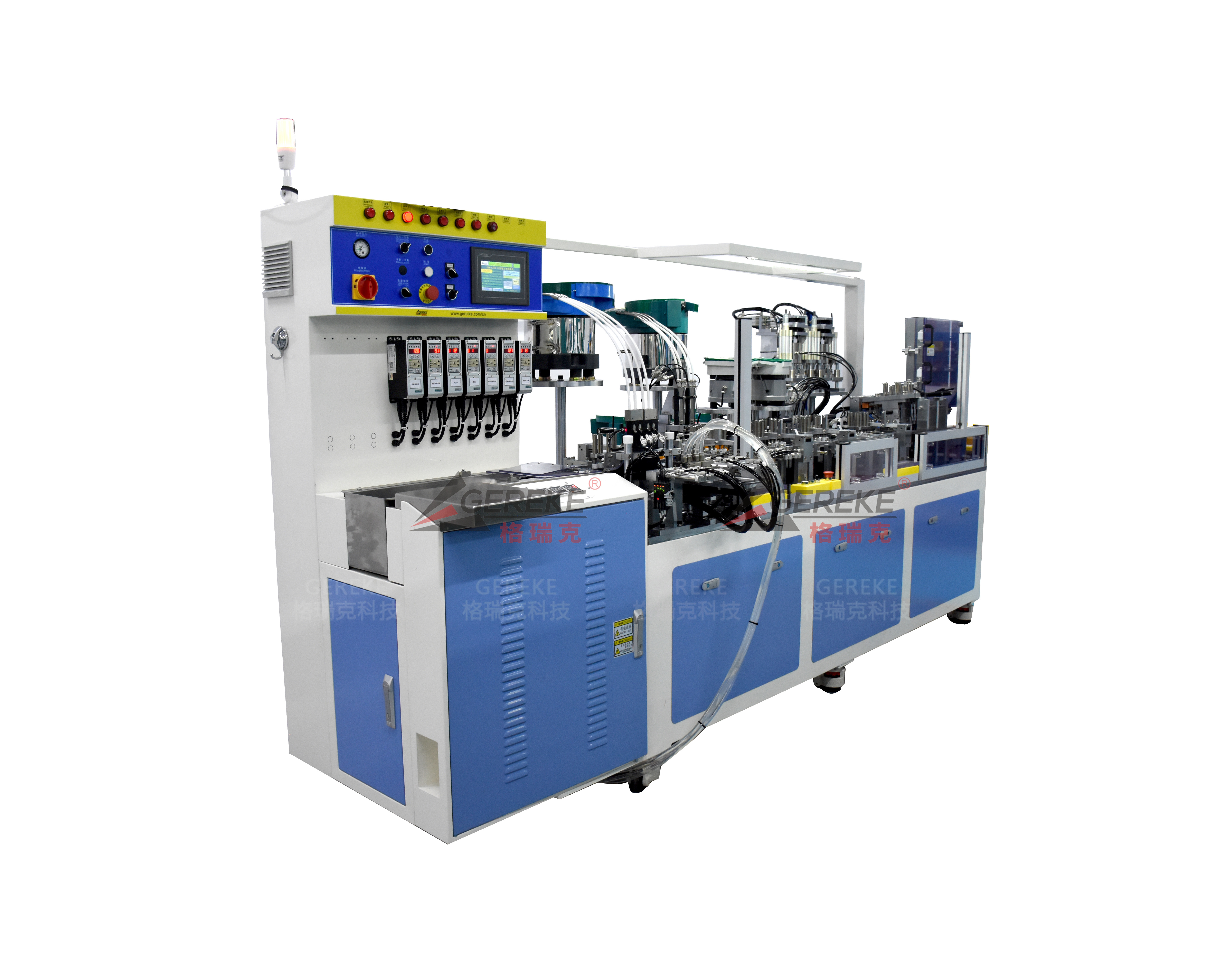

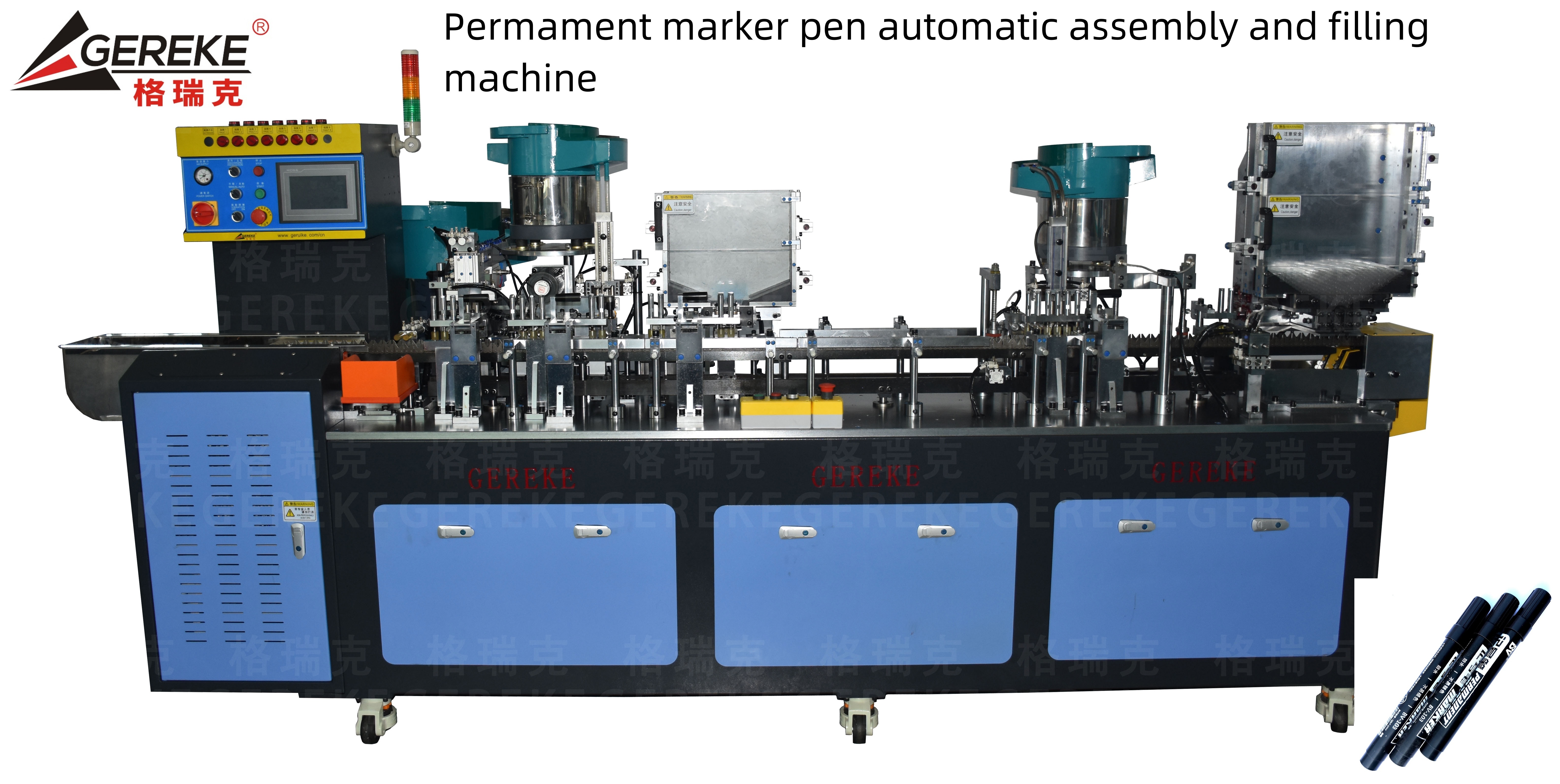

Marker Pen Automatic Assembly Machine With Single Nib
Machine structure make from steel S45C.
Intelligent System: High quality PLC system integrated with touch screen and inverter. It is easy to operate and energy saving.
Machine Transmission: Adopted high performance electronic cam transmission system, stabilized and durable.
Feeding System: High performance vibrating bowl feeder
Machine major component origin list:
| No. | Product | Producer | Origin Country | |||||
| 1 | Solenoid valve | Sch | French | |||||
| 2 | Photo sensor/fiber optic | Panic/Keyence | Japan | |||||
| 3 | Main motor | China Taiwan,INOVANCE | China taiwan | |||||
| 4 | PLC | INOVANCE/Mitsu | China/Japan | |||||
| 5 | Relay | Schder/Honey | French/USA | |||||
| 6 | Proximity sensor | Autonics | Korea | |||||
| 7 | Air filter | China taiwan | China taiwan | |||||
| 8 | Cylinder | SMC /Air tac | Japan/China taiwan | |||||
| 9 | Electronic cam | koyo | Japan | |||||
| 10 | Inverter | Shihlin/Delta | China taiwan | |||||
| 11 | Stroke/rod eye | Iko,Misumi | Japan | |||||
Features:
- Comtrolled by PLC
- Supply By Vibration
- Easy Operation,Less Labour
- Each Section Has Check Sensors
- All Components are From International Brand
| Voltage | 380VAC /50HZ,15A |
| Power | 3500W |
| Dimension | 3400*2100*1800mm |
| Weight | 2200kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 50-60 pcs/min |
| Frequency | 50hz |
Product application: Plant for Writing pen manufacturer
FAQ
Q: I am interested in your product,can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
