PanterReliable, precise, and easy to change over. Our spray pump output is up 40% with zero quality complaints since day one.
Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | Medical ficility autmatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | 100000~120000$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Video Voltage | 220 V, 380 V | KVA | 3.5 KW |
|---|---|---|---|
| Pneumatic | 5-6kgf/m2 | Operating Rate | 60-65 Pcs/min |
| Lead Time | 90-150days | Dimensions | 3500mm*3200mm*1800mm(L*W*H) |
| Weight (kg) | 2700kg | Warranty | 1 Year Guarantee |
| After-sales Service Provided | Service Machinery Overseas | Advantage | High Efficiency Low Cost |
| Power | 3.5 KW | Weight | 2700kg |
| Pneumatic Pressure | 5-6kgf/m2 | Voltage | 220 V, 380 V |
| Highlight | sprayer pump engine assembly machine,automatic spray pump test machine,leakage test machine for spray pumps |
||
Product Description

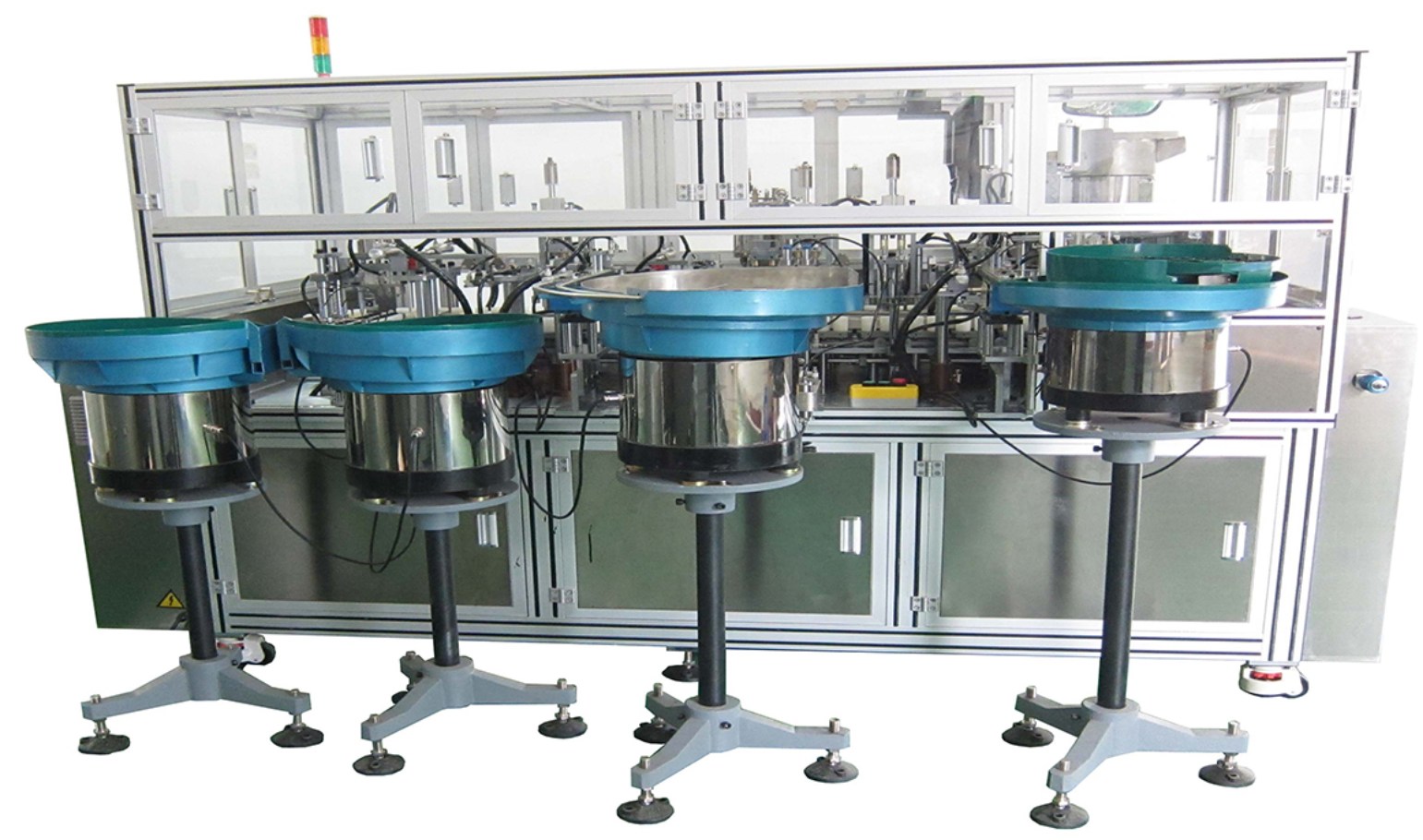

Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
Product Overview
This advanced automatic assembly and leakage test machine is specifically designed for sprayer pump engine production. Built with durable S45C steel construction, it ensures reliable performance in industrial manufacturing environments.
Key Features
- Intelligent System: High-quality PLC system integrated with touch screen and inverter for easy operation and energy efficiency
- Machine Transmission: High-performance electronic cam transmission system for stabilized and durable operation
- Feeding System: High-performance vibrating bowl feeder for efficient material handling
Major Components
| No. | Product | Producer | Origin Country |
|---|---|---|---|
| 1 | Solenoid valve | Sch | French |
| 2 | Photo sensor/fiber optic | Panic/Keyence | Japan |
| 3 | Main motor | China Taiwan,INOVANCE | China taiwan |
| 4 | PLC | INOVANCE/Mitsu | China/Japan |
| 5 | Relay | Schder/Honey | French/USA |
| 6 | Proximity sensor | Autonics | Korea |
| 7 | Air filter | China taiwan | China taiwan |
| 8 | Cylinder | SMC /Air tac | Japan/China taiwan |
| 9 | Electronic cam | koyo | Japan |
| 10 | Inverter | Shihlin/Delta | China taiwan |
| 11 | Stroke/rod eye | Iko,Misumi | Japan |
Assembly Process

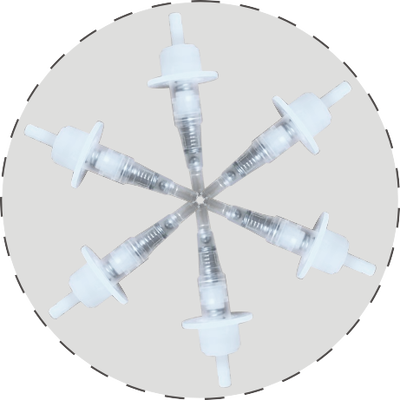

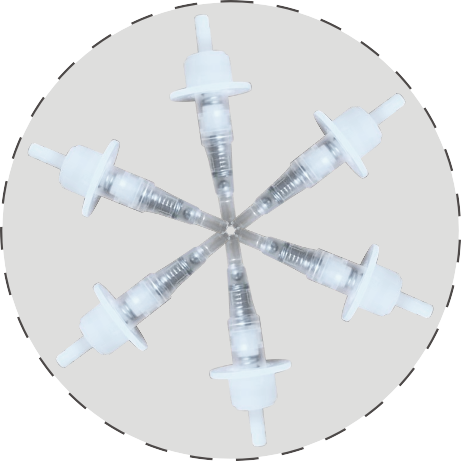

The assembly system automatically feeds components including shell, piston, pump, spring, ball, and cap. It detects component presence and shell orientation, then automatically assembles them together.
Manufacturing Process Steps
- House feeding
- House check
- Oil filling
- Ball filling and check
- Spring filling and check
- Hole feeding and check
- Oil brush
- Short spring fitting and check
- Piston feeding and check
- Vice piston feeding and check
- Transfer assembly part to the house
- Cap feeding and check
- Cap pressure
- Defect part ejection
- Discharge for the good production
Technical Specifications
| Voltage | 380VAC /50HZ, 15A |
| Power | 3000W |
| Dimension | 3500*3500*1800mm |
| Weight | 2200kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 60-65 pcs/min |
| Frequency | 50hz |
Application
Designed for sprayer pump production manufacturers in industrial settings.
Frequently Asked Questions
Q: I am interested in your product, can you supply?
A: Yes, we are a professional manufacturer and exporter specializing in the design, development and production of various special filling machines, assembly machines, packing machines and related equipment.
Q: What do I need to provide documents?
A:
- The material of your product
- The size of your product and the pattern
- The shape of your product
Q: What is the lead time?
A: 45-90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, or by express delivery
Q: Do you have the CE certification?
A: Yes, we have CE certification
Q: What document will you provide?
A:
- Installation manuals
- Maintenance manuals
- Electrical schematics diagram
- For medical machines: IQ, OQ documentation
- Spare part list
Q: What is the material of your machine?
A: Most parts are 45# steel, with product-contact components made from stainless steel S304
Q: What services can we provide?
A:
- Accepted Delivery Terms: FOB
- Accepted Payment Currency: USD, EUR, HKD
- Accepted Payment Type: T/T, Cash
- Language Spoken: English, Chinese
