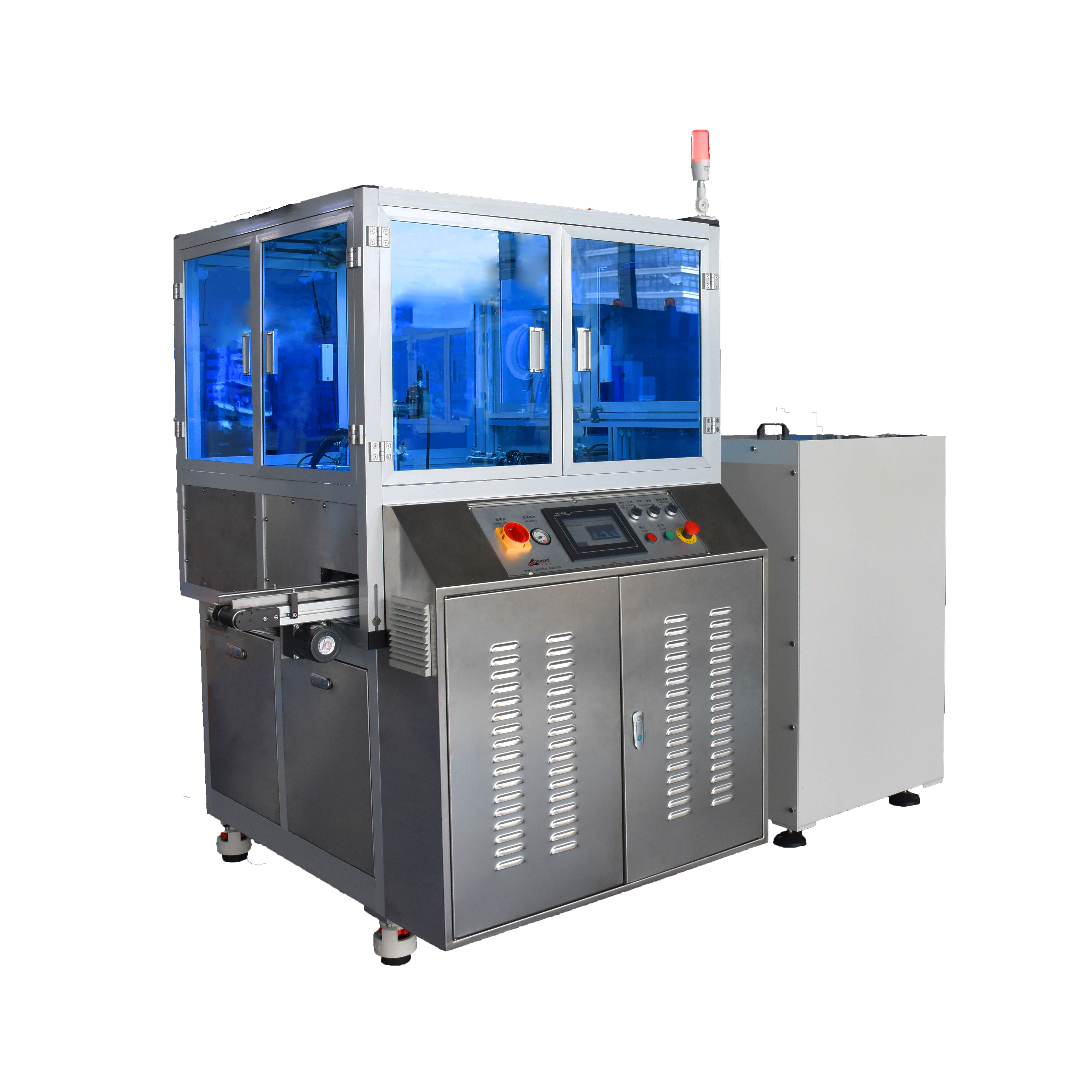

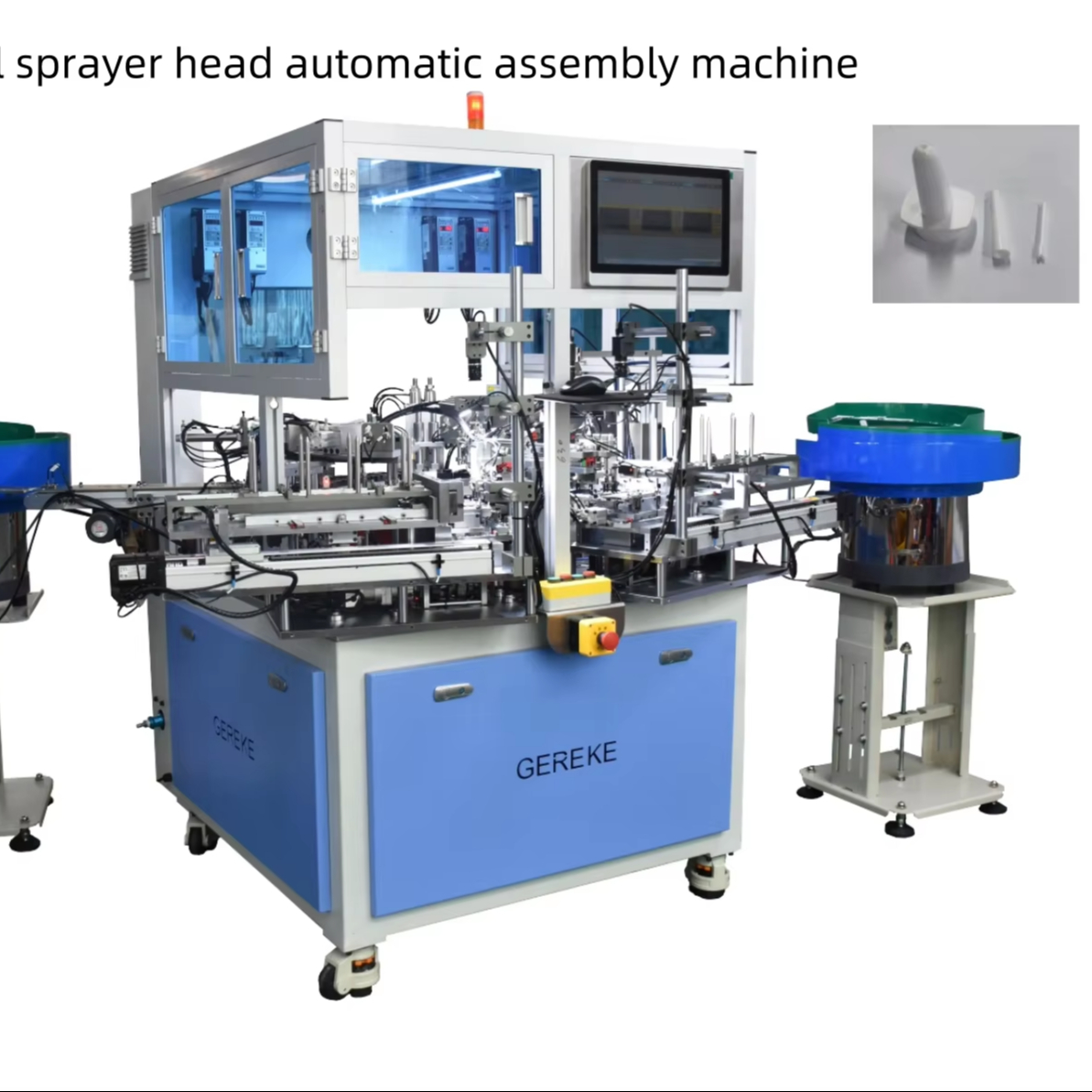

Nasal Sprayer Head Automatic Assembly Machine
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | Medical ficility autmatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | 35000~45000 usd$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380V 50HZ 3 PHASE | Power | 1500 W |
|---|---|---|---|
| Air Pressure | 0.5~0.8MPa | Operating Speed | 3000-3600 Pcs/hour |
| Lead Time | 90 Days | Weight (kg) | 1500kg |
| Dimension | 2500*2000*1800mm | Warranty | 1 Year Guarantee |
| After Warranty Service | Service Machinery Overseas | Key Selling Points | High Efficiency |
| Highlight | Sprayer Head Automatic Assembly Machine,Nasal Sprayer Head Assembly Machine,3600 pcs/hour Sprayer Head Assembly Machine |
||
Product Description
Products Description
Nasal sprayer head automatic assembly machine pump core nasal mist oral sprayer pipe cutting and inserting

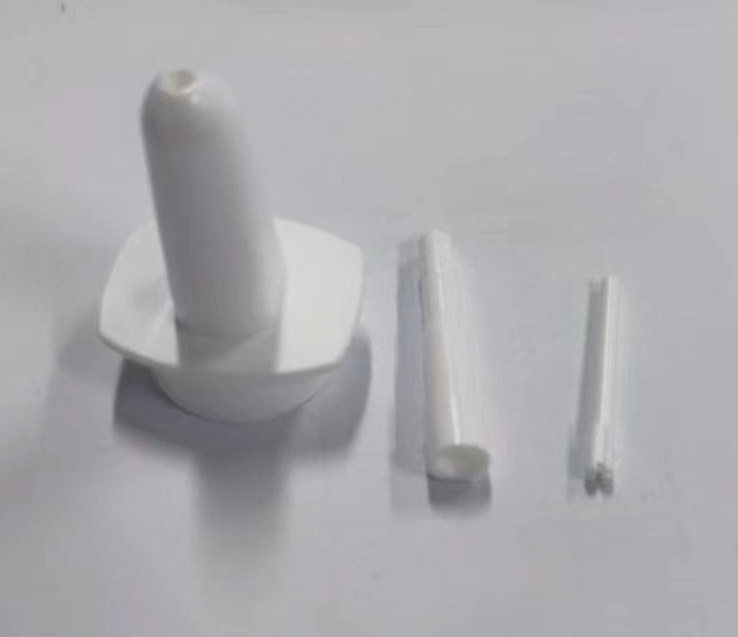

the assembly will auto feeding the shell ,piston,pump ,spring ,ball and cap ,and automatic through detect the exist and the shell direction ,then automatic assembly together .
Manufacturing Technique
- base head feeding
- base head check
- water core feeding and check
- cap pressure
- defect part ejection
- Discharge for the good production
Product Paramenters
| Voltage | 380VAC /50HZ,15A |
| Power | 3000W |
| Dimension | 2500*2000*1800mm |
| Weight | 1200kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 60-65 pcs/min |
| Frequency | 50hz |
