Trigger Sprayer Full Automatic Assembly Inspection Machine Mist Sprayer Pump
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | Medical ficility autmatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | 90000~150000 usd |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380v/50hz/3phase | Power | 4.5kw |
|---|---|---|---|
| Air Pressure | 0.5~0.8 Pa | Lead Time | 90 Days |
| Capacity | 3000~3600 PCS | MOQ | 1 Set |
| Weight (kg) | 2000kg | Dimension | 3500*3500*1800mm |
| Warranty | 1 Year | After-sales Service Provided | Service Machinery Overseas |
| Highlight | Trigger Sprayer Automatic Assembly Machine,Mist Sprayer Pump Assembly Inspection Machine,Full Automatic Assembly Inspection Machine |
||
Product Description
Products Description

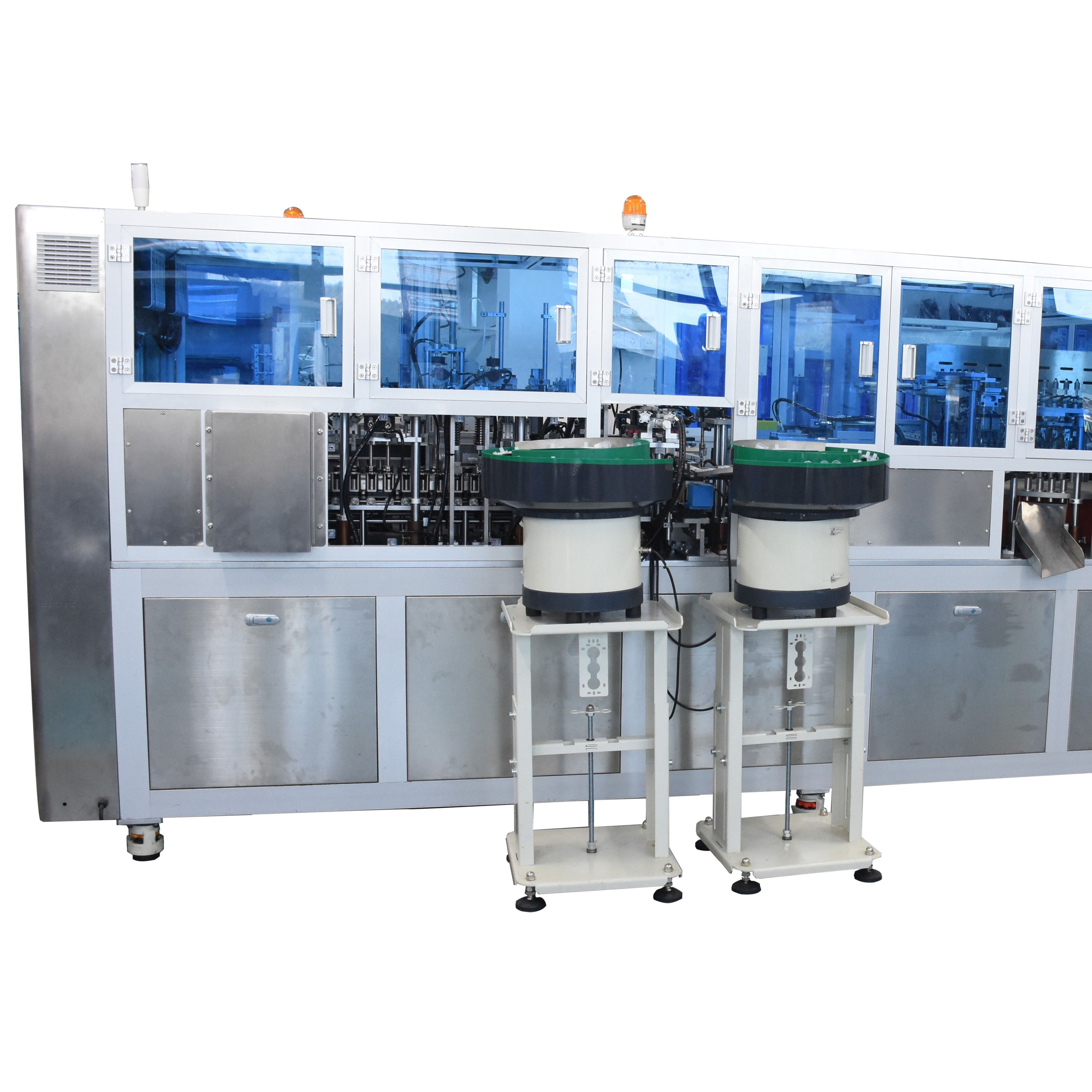

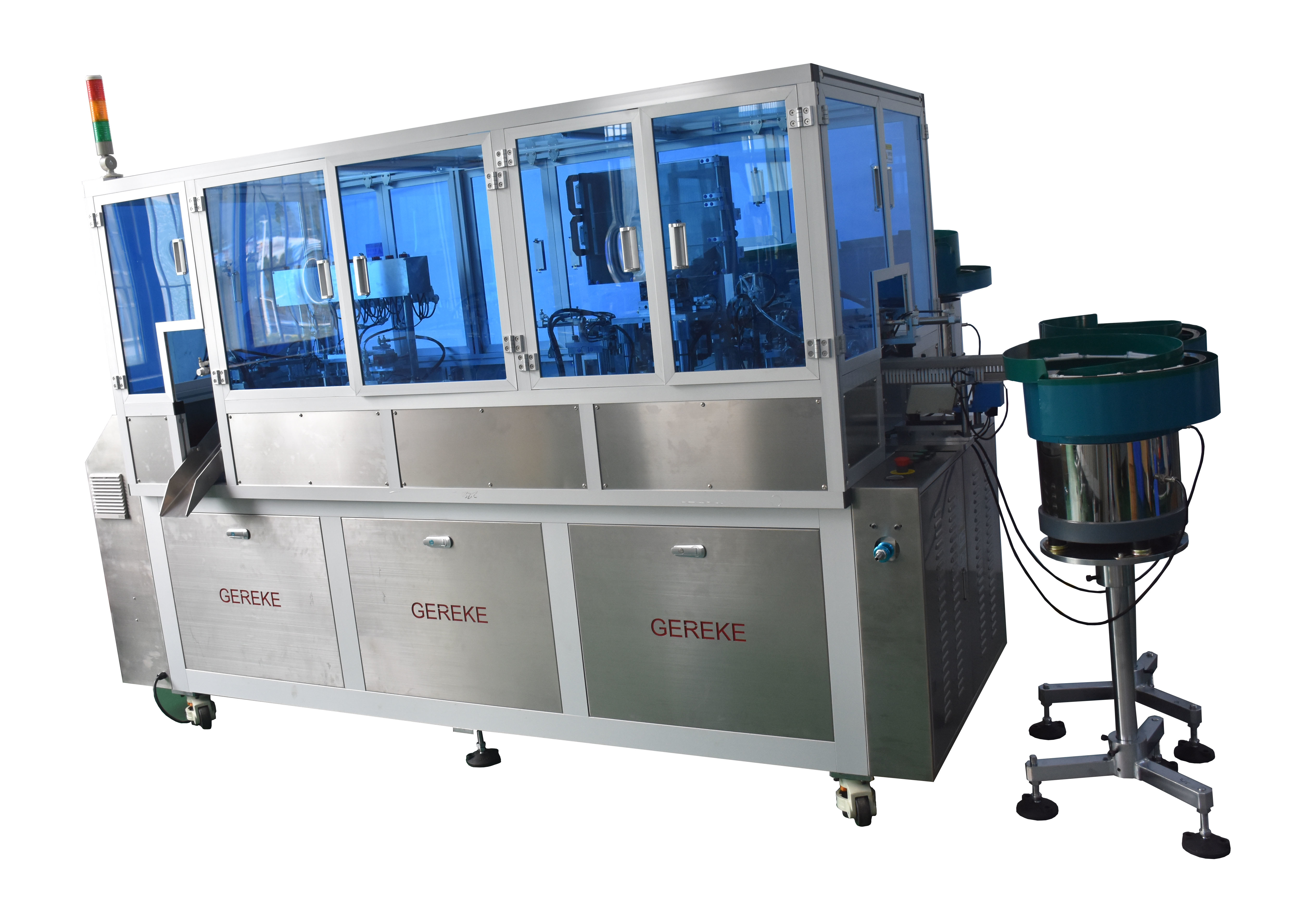

Trigger sprayer full automatic assembly and inspection machine mist sprayer pump
the assembly will auto feeding the shell ,piston,pump ,spring ,ball and cap ,and automatic through detect the exist and the shell direction ,then automatic assembly together .
Manufacturing Technique
- house feeding
- house check
- Oil filling
- ball filling and check
- spring filling and check
- hole feeding and check
- oil brush
- short spring fitting and check
- piston feeding and check
- vice piston feeding and check
- transfer assembly part to the house
- cap feeding and check
- cap pressure
- defect part ejection
- Discharge for the good production
Product Paramenters
| Voltage | 380VAC /50HZ,15A | |||
| Power | 3000W | |||
| Dimension | 3500*3500*1800mm | |||
| Weight | 2200kg | |||
| Air Pressure | 0.5~0.8MPa | |||
| Operating Speed | 60-65 pcs/min | |||
| Frequency | 50hz |
Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical
product range. We have established a strong team of capable staff who concentrate on their own area of ex
pertise. Gereke carries out customizations professionally according to the user’s needs. The entire process
from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and
rigorous test on the quality and performance of the machinery to ensure that the internationally advanced st
andards of the product are there. The excellence in quality and performance has won the complete trust of
many customers.
