Oral Sprayer Nasal Spray Pump Assembly Machine Automatic Inspection
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | T880 |
| Document | Medical ficility autmatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | 120000~150000$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380VAC /50HZ，15A，3 Phase | Power | 3000W |
|---|---|---|---|
| Air Pressure | 0.5~0.8MPa | Operating Speed | 50-60 Pcs/min |
| Lead Time | 90-150days | MOQ | 1 SET |
| Weight | 2200kg | Dimension | 3500*2100*1800mm |
| Warranty | 1 Year | After-sales Service Provided | Service Machinery Overseas |
| Highlight | Nasal Spray Pump Assembly Machine,Oral Sprayer Assembly Machine,3000W Automatic Assembly Inspection Machine |
||
Product Description
Products Description

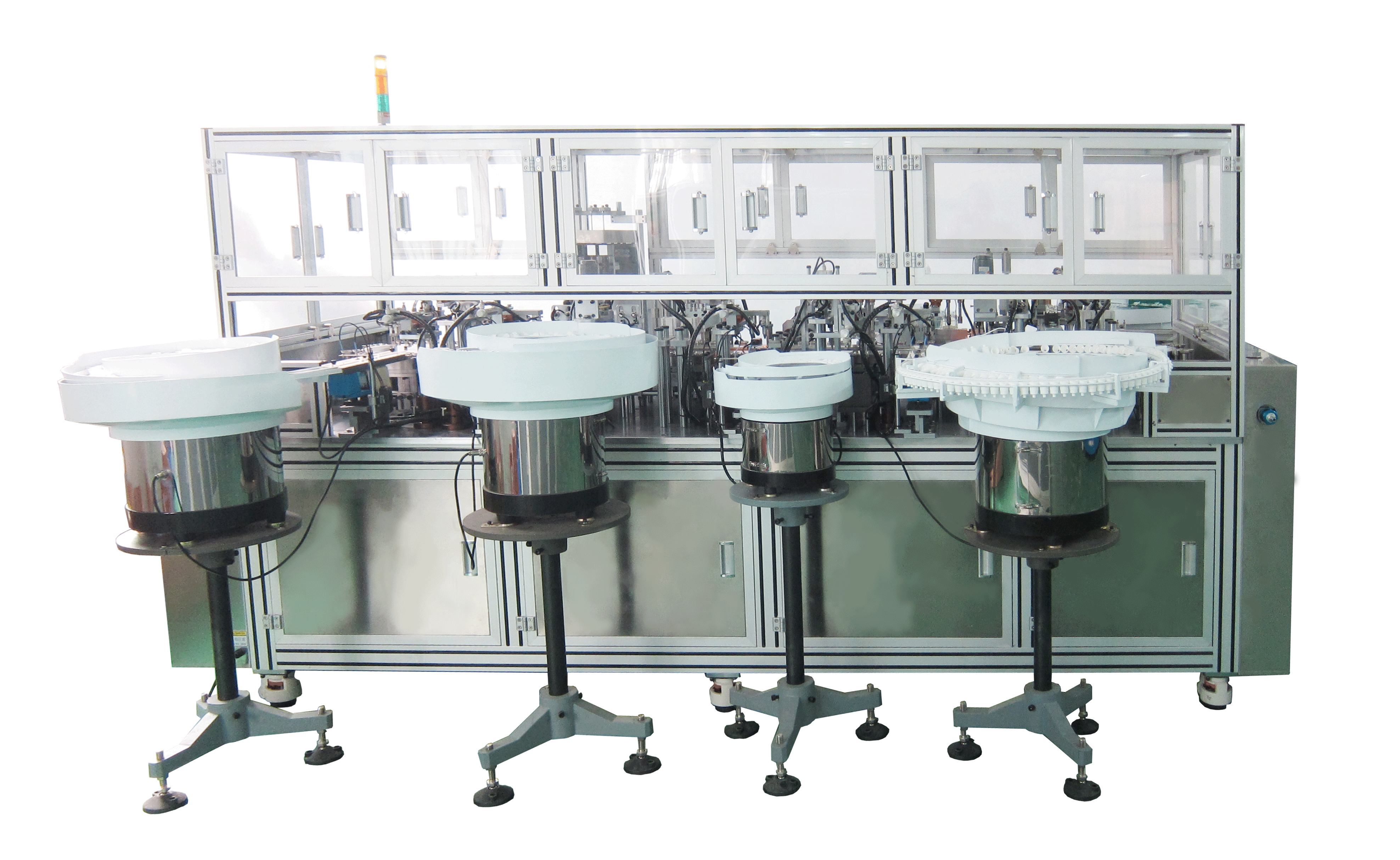

Pump core automatic assembly and inspection Machine

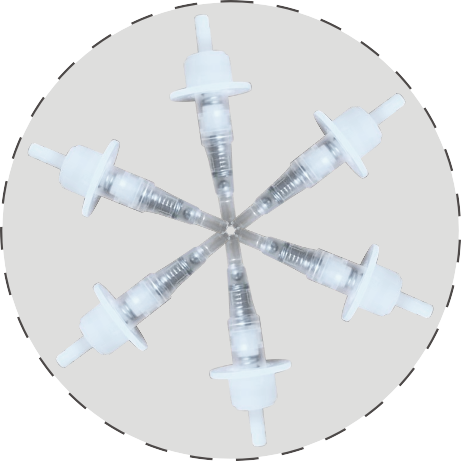

the assembly will auto feeding the shell ,piston,pump ,spring ,ball and cap ,and automatic through detect the exist and the shell direction ,then automatic assembly together .
Manufacturing Technique
- house feeding
- house check
- Oil filling
- ball filling and check
- spring filling and check
- hole feeding and check
- oil brush
- short spring fitting and check
- piston feeding and check
- vice piston feeding and check
- transfer assembly part to the house
- cap feeding and check
- cap pressure
- defect part ejection
- Discharge for the good production
Product Parameters
| Voltage | 380VAC /50HZ,15A | |||
| Power | 3000W | |||
| Dimension | 3500*3500*1800mm | |||
| Weight | 2200kg | |||
| Air Pressure | 0.5~0.8MPa | |||
| Operating Speed | 60-65 pcs/min | |||
| Frequency | 50hz |
Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical
product range. We have established a strong team of capable staff who concentrate on their own area of ex
pertise. Gereke carries out customizations professionally according to the user’s needs. The entire process
from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and
rigorous test on the quality and performance of the machinery to ensure that the internationally advanced st
andards of the product are there. The excellence in quality and performance has won the complete trust of
many customers.
Customer Photos
FAQ
Q: I am interested in your product,can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/
Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
