Mist Sprayer Aerosol Automatic Filling Machine for Aluminum Bottle Sprayer Cap Crimp
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | T880 |
| Document | Medical ficility autmatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | $105,000~120000 |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380 V, 220 V | KVA | 4.5KW |
|---|---|---|---|
| Pneumatic | 5-6kgf/m2 | Lead Time | 90-120days |
| Weight (kg) | 3500kg | Dimensions | 4500*2500*1800mm |
| Warranty | One Year | After-sales Service Provided | Service Machinery Overseas |
| Advantage | High Efficiency Low Cost | Speed | 6000~7200pcs/hr |
| Highlight | Mist Sprayer Automatic Filling Machine,Aluminum Bottle Aerosol Filling Machine,Aluminum Sprayer Automatic Assembly Machine |
||
Product Description
Products Description

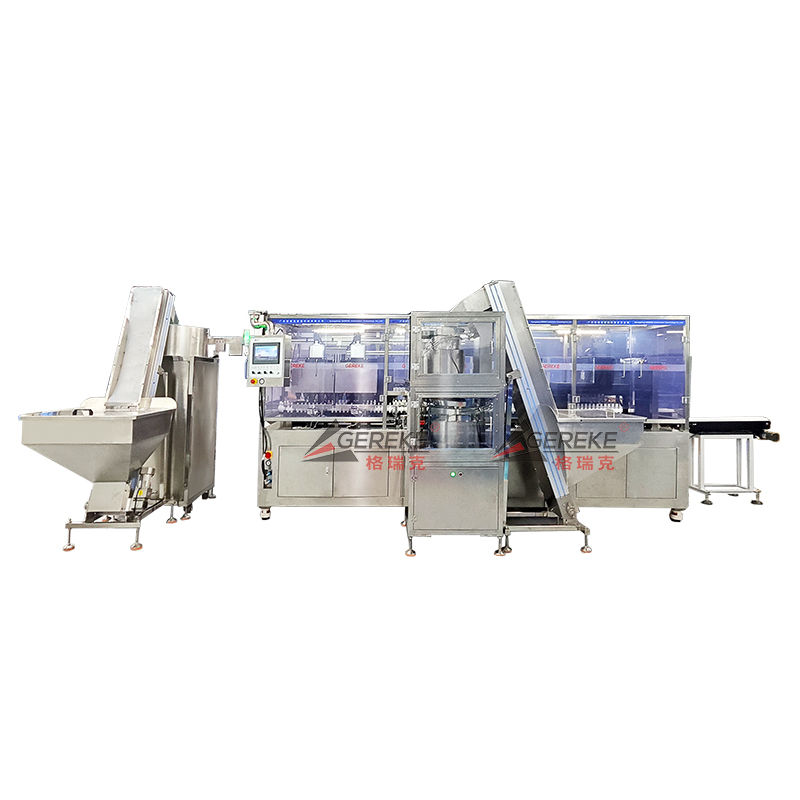

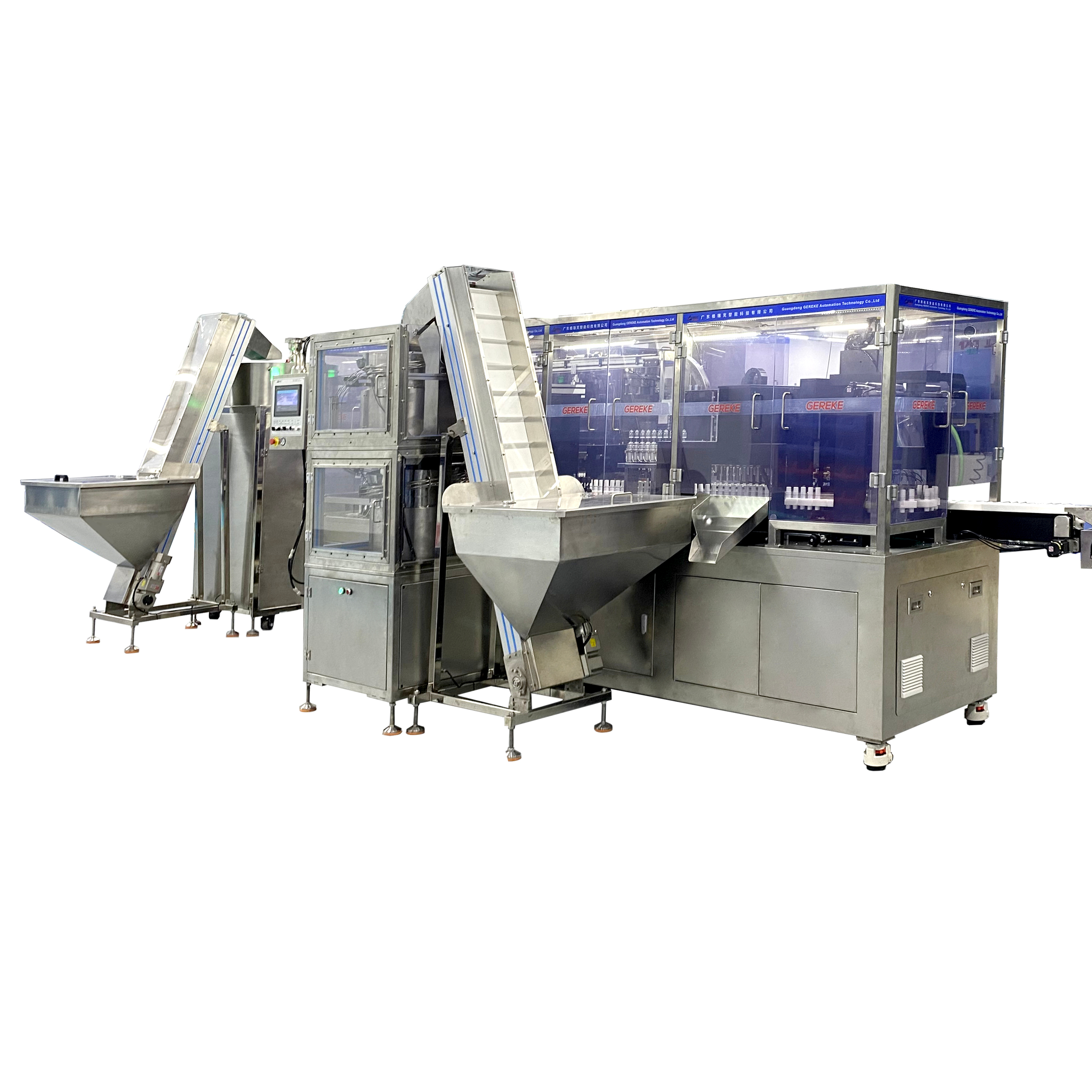

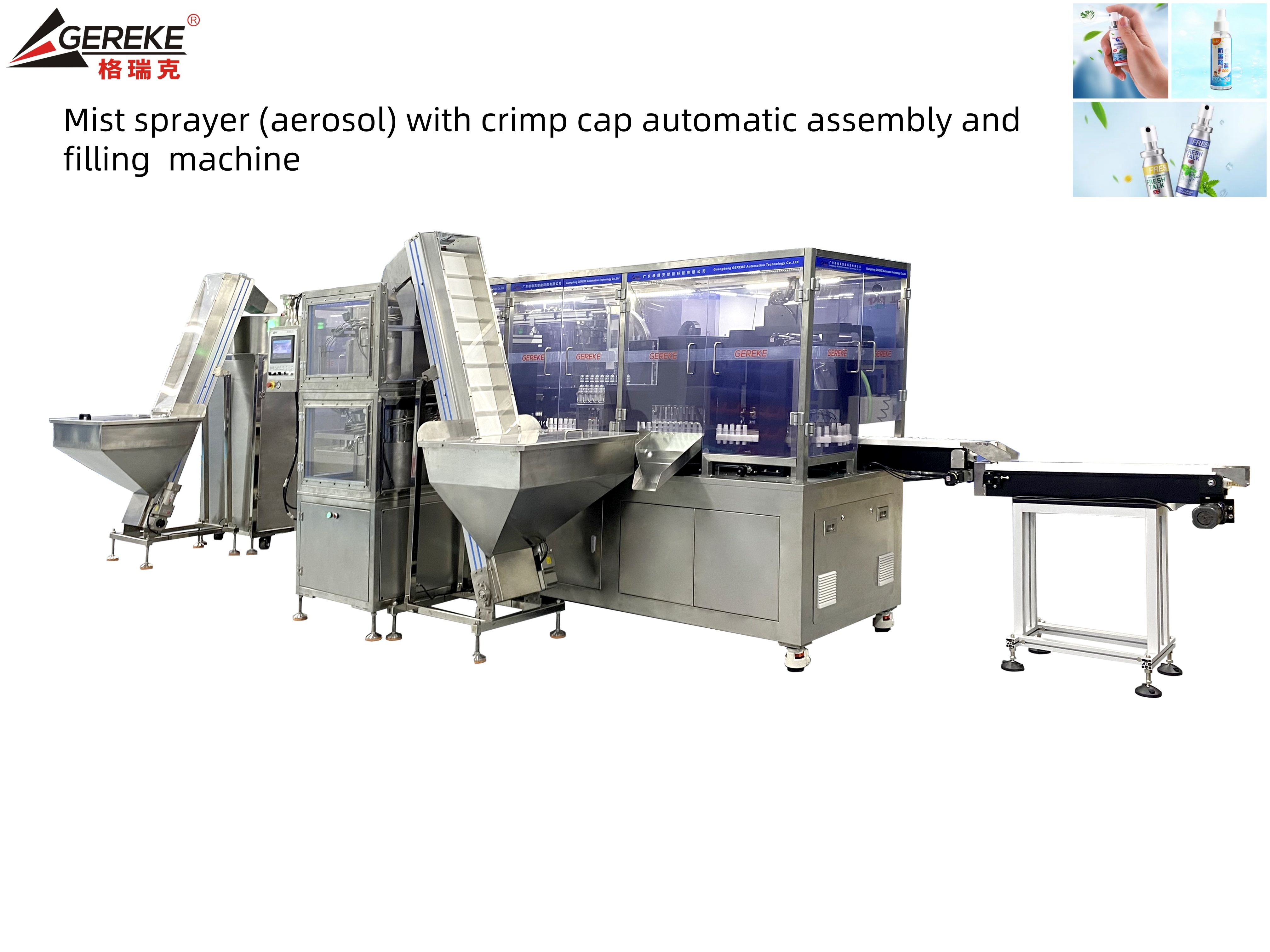

Aerosol aluminum bottle and aluminum sprayer cap crimp automatic Assembly and filling Machine
the assembly will auto feeding the base and top shell ,and through detect the exist and the shell direction ,then orientation it. After that the strip cutting machine will operate according with the detector and check the length , width and the dirty surface through camera .Then auto fitting it to the shell and pressure it .
The packaging machine will auto feed the bags ,desiccant .Then Push the cassette and desiccant to bag ,sealing it .
Manufacturing Technique
- bottle feed
- 2 direction (upward and downward)check
- 3 Orientation
- 4 filling the reagent
- 5 reagent check
- 6 the aluminum sprayer fitting
- 7 sprayer check
- 8 crimped together and pressure
- 9 sprayer check again
- 10 cap cover fitting
- 11 cap cover check
- 12 cap cover pressure
- 13 defect part ejection
- 14 Discharge for the good production
Product Paramenters
| Voltage | 380VAC /50HZ,15A | |||
| Power | 3000W | |||
| Dimension | 4000*2100*1800mm | |||
| Weight | 2200kg | |||
| Air Pressure | 0.5~0.8MPa | |||
| Operating Speed | 6000-7000 pcs/H | |||
| Frequency | 50hz |
FAQ
Q: I am interested in your product, can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different
special filling machine, assembly machine , packing machine and so on.
Writing instrument pen: Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/
Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts: lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
