Nasal Inhaler Full Automatic Filling Machine
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | T880 |
| Document | Medical ficility autmatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | $150,000~$250,000 |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 5 PCS |
Product Details
| Voltage | 220 V, 380 V | KVA | 3.5KW |
|---|---|---|---|
| Pneumatic | 5-6kgf/m2 | Operating Rate | 120-140 Pcs/min |
| Lead Time | 120-150days | Warranty | 1 Year Guarantee |
| Weight | 4500kg | Dimensions | 8700mm*2200mm*1800mm(L*W*H) |
| After-sales Service Provided | Service Machinery Overseas | Advantage | High Efficiency Low Cost |
| Highlight | Nasal Inhaler Automatic Filling Machine,Full Automatic Filling Machine,Nasal Inhaler Automatic Assembly Machine |
||
Product Description

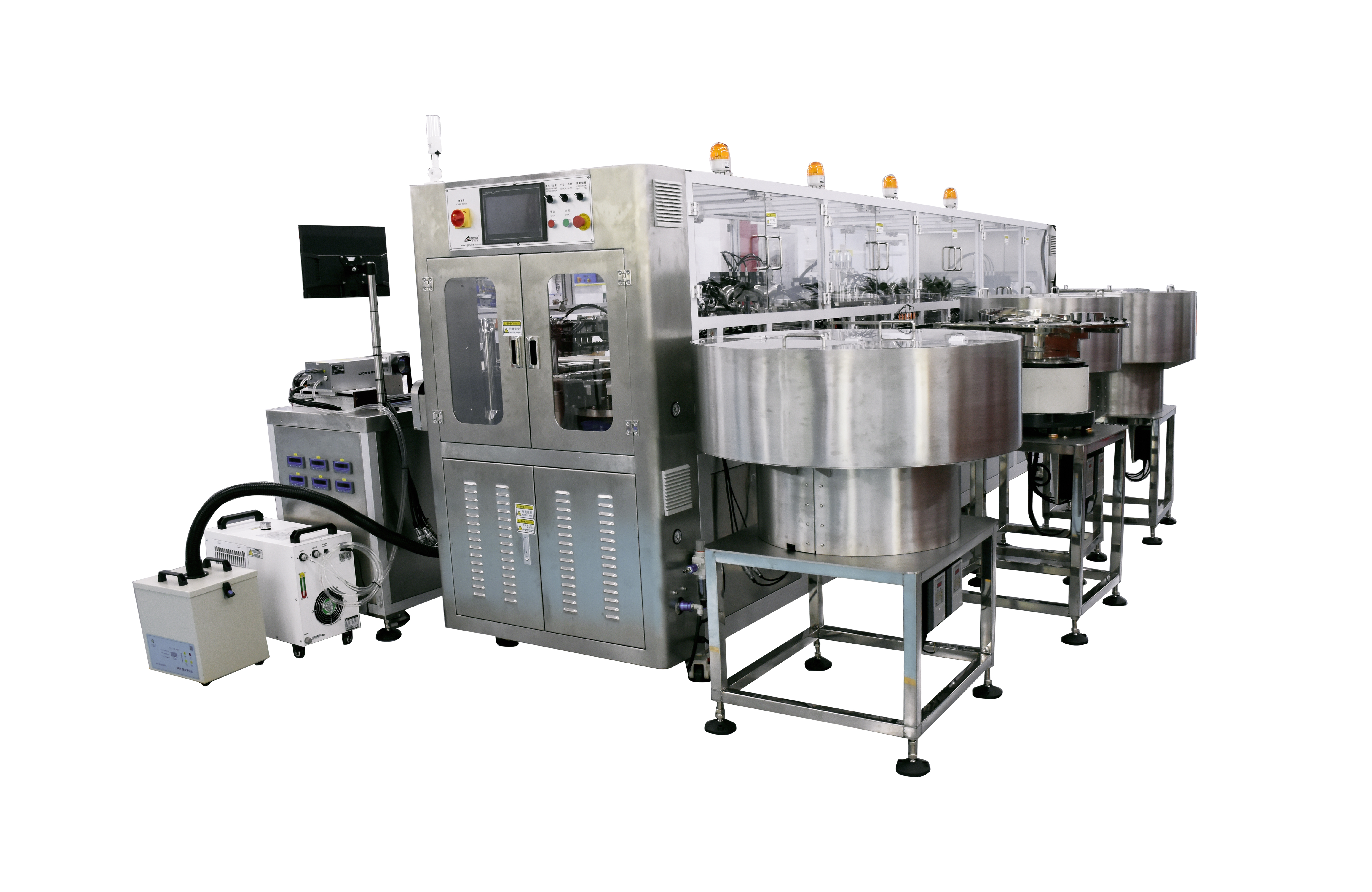

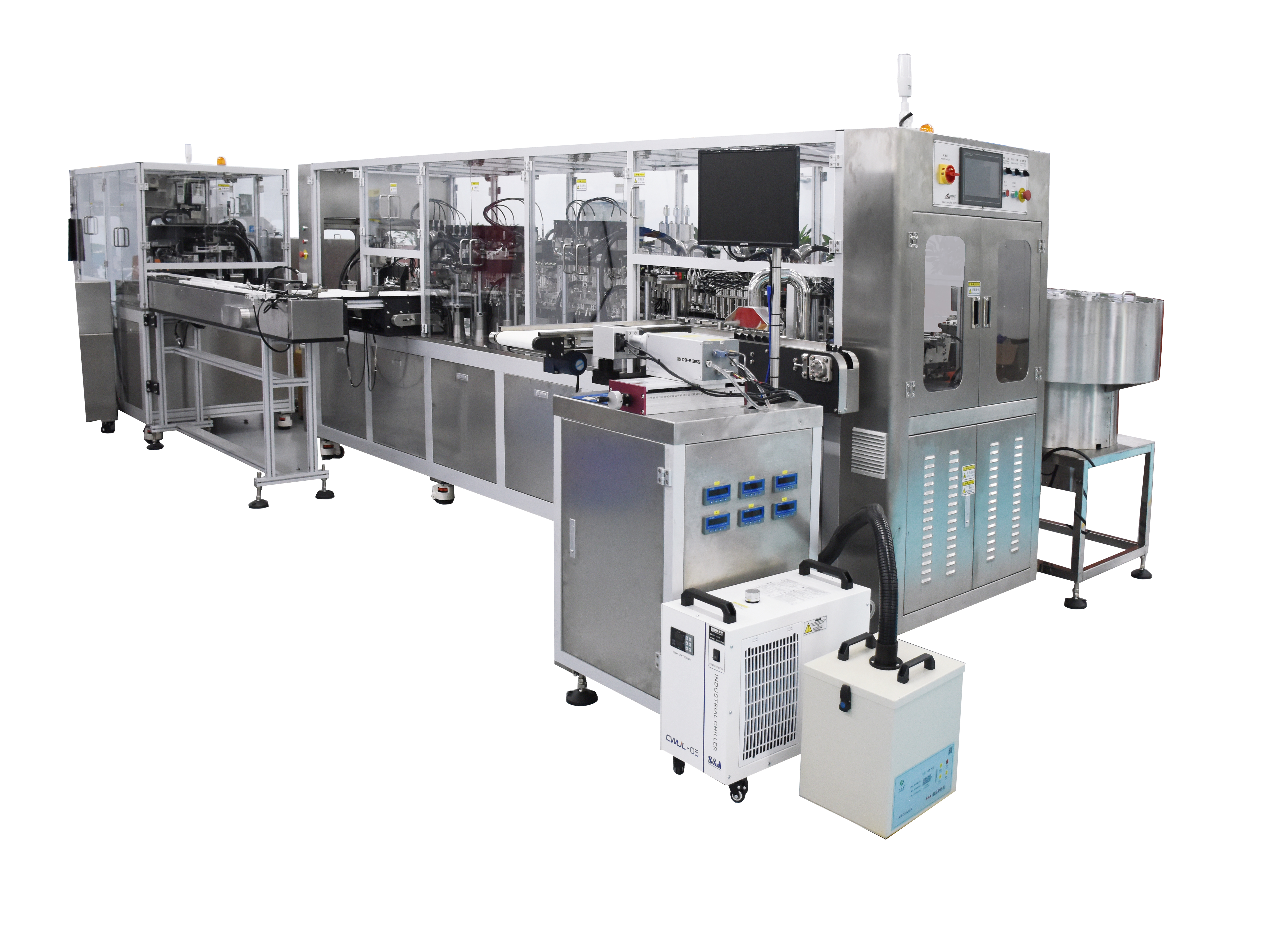

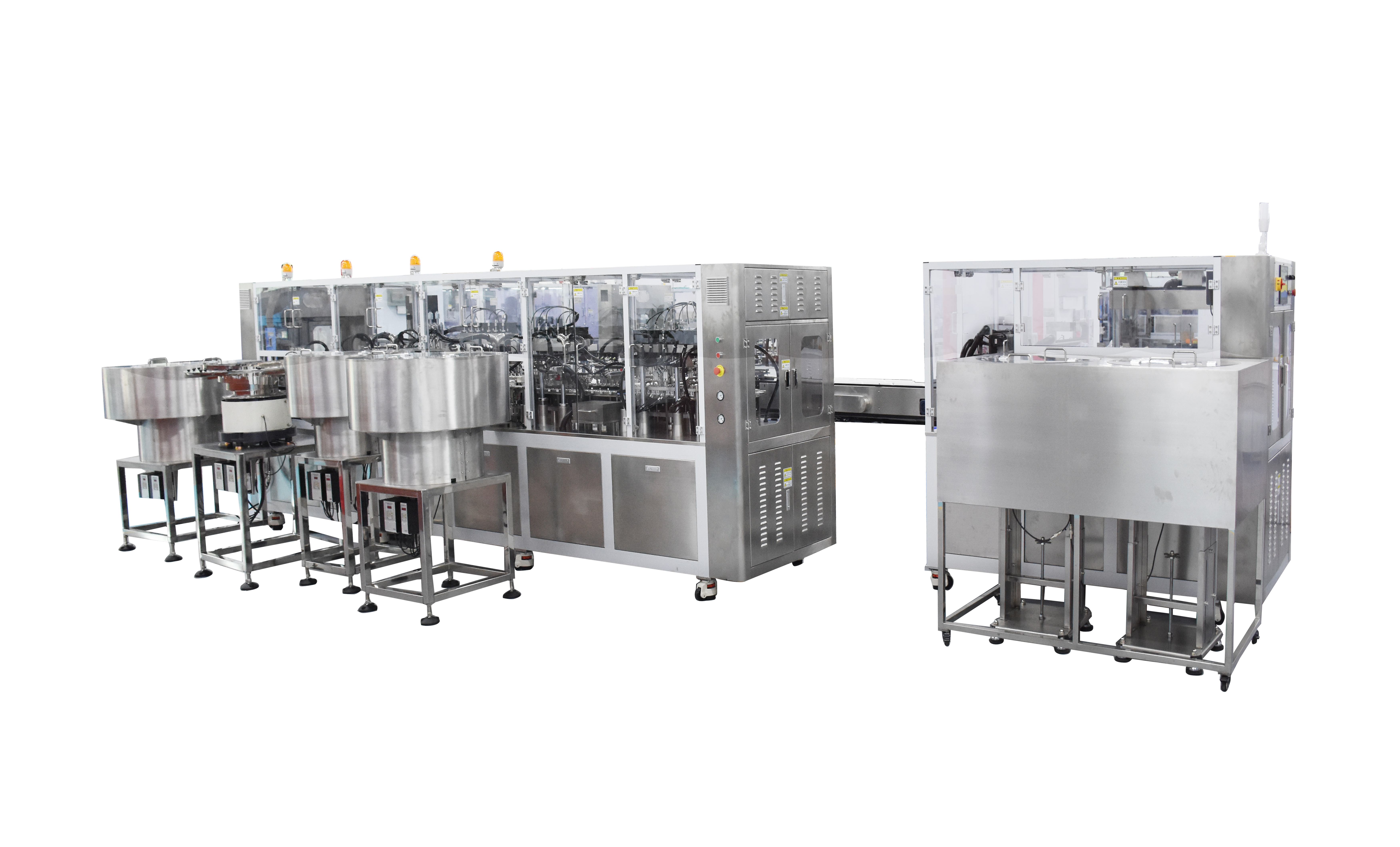

Nasal Inhaler Assembly And Filling Machine With Full Automatic And High Speed Running
Machine structure make from steel S45C.
Intelligent System: High quality PLC system integrated with touch screen and inverter. It is easy to operate and energy saving.
Machine Transmission: Adopted high performance electronic cam transmission system, stabilized and durable.
Feeding System: High performance vibrating bowl feeder
| Machine major component origin list: | ||||||||
| No. | Product | Producer | Origin Country | |||||
| 1 | Solenoid valve | Sch | French | |||||
| 2 | Photo sensor/fiber optic | Panic/Keyence | Japan | |||||
| 3 | Main motor | China Taiwan,INOVANCE | China taiwan | |||||
| 4 | PLC | INOVANCE/Mitsu | China/Japan | |||||
| 5 | Relay | Schder/Honey | French/USA | |||||
| 6 | Proximity sensor | Autonics | Korea | |||||
| 7 | Air filter | China taiwan | China taiwan | |||||
| 8 | Cylinder | SMC /Air tac | Japan/China taiwan | |||||
| 9 | Electronic cam | koyo | Japan | |||||
| 10 | Inverter | Shihlin/Delta | China taiwan | |||||
| 11 | Stroke/rod eye | Iko,Misumi | Japan | |||||
Features:
1,Comtrolled by PLC 2,Supply By Vibration
3,Easy Operation,Less Labour
4,Each Section Has Check Sensors
5,All Components are From International Brand
Tube feeding ->Tube check->wick feeding->wick check->cap feeding ->cap check and press->Out tube feeding->Out tube check ->Shift the tube to the out tube ->Rotation->Rotation torque check ->Height check->Whole part turn over->Bottle feeding->Bottle check->oil filling ->Oil weight check->shift the good one to the belt->eject the bad one ->The bottle with oil feeding ->The bottle with oil check->Shift the out tube the the bottle and rotation->Rotation torque check ->Height check->Eject the bottle without assembly->Finished product weight check->Bad part eject-> Good part shift the another belt ->Laser printing ->discharge
| Voltage | 380VAC /50HZ,15A |
| Power | 4500W |
| Dimension | 8700*2100*1800mm |
| Weight | 4500kg |
| Air Pressure | 0.5~0.8MPa |
| Operating Speed | 120-140 pcs/min |
| Frequency | 50hz |
Product application: Plant for vial filling product manufacturer
FAQ
Q: I am interested in your product,can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
