Lotion Pump Sprayer Automatic Assembly Machine 24/410 28/410
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | Lotion Pump Assembly Machin...LP.pdf |
| Minimum Order Quantity | 1 set |
| Price | 120000~150000$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380 V, 220 V | KVA | 3 KW |
|---|---|---|---|
| Pneumatic | 5-6kgf/m2 | Speed | 100~120 Pcs/min |
| Lead Time | 90-150days | Weight (KG) | 2500 Kg |
| Dimensions | 4000mm*2200mm*1800mm(L*W*H) | After-sales Service Provided | Service Machinery Overseas |
| Warranty | 1-year | Advantage | High Efficiency Low Cost |
| Highlight | Lotion Pump Sprayer Assembly Machine,24/410 Pump Sprayer Assembly Machine,28/410 Pump Sprayer Automatic Assembly Machine |
||
Product Description
Products Description

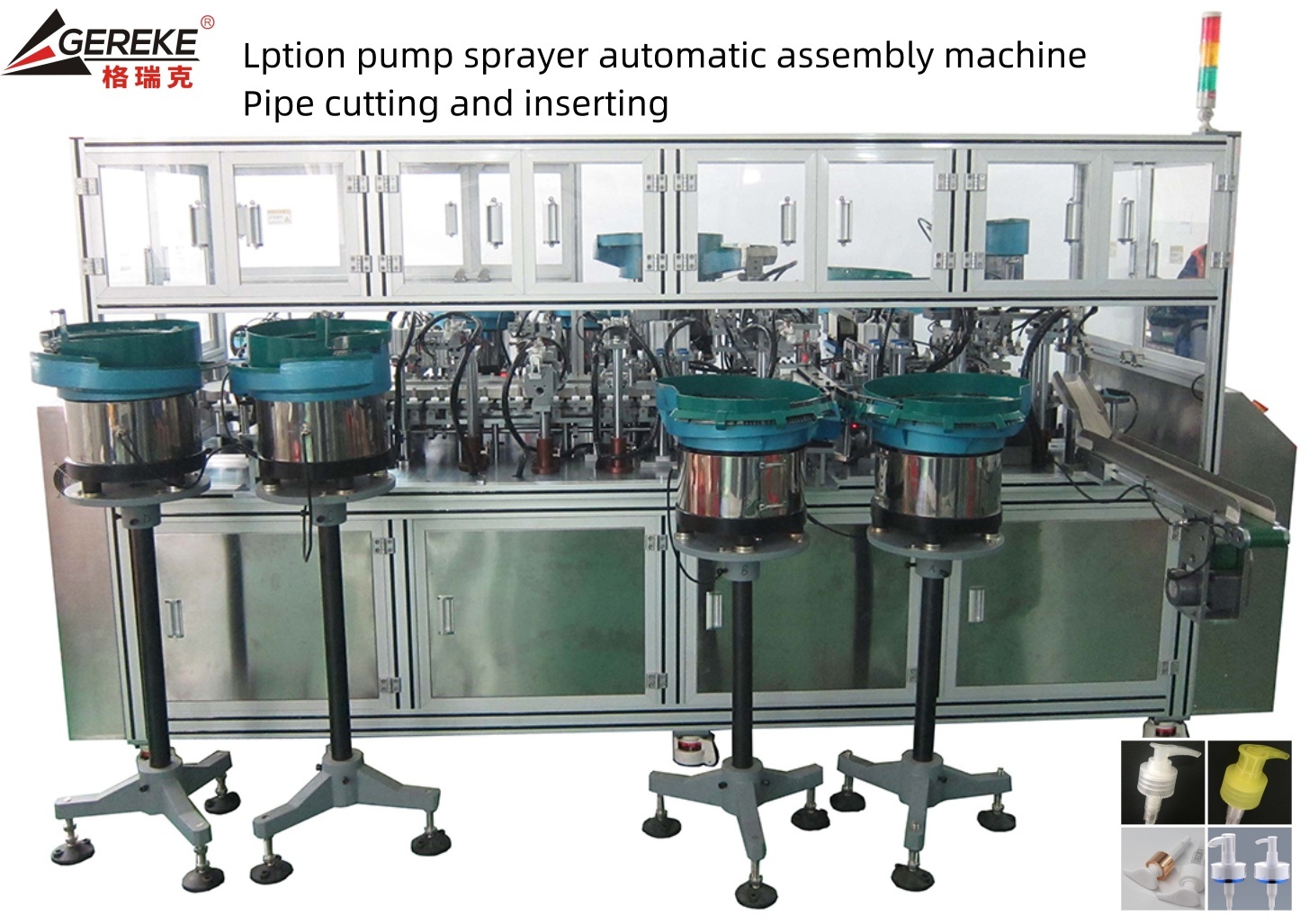

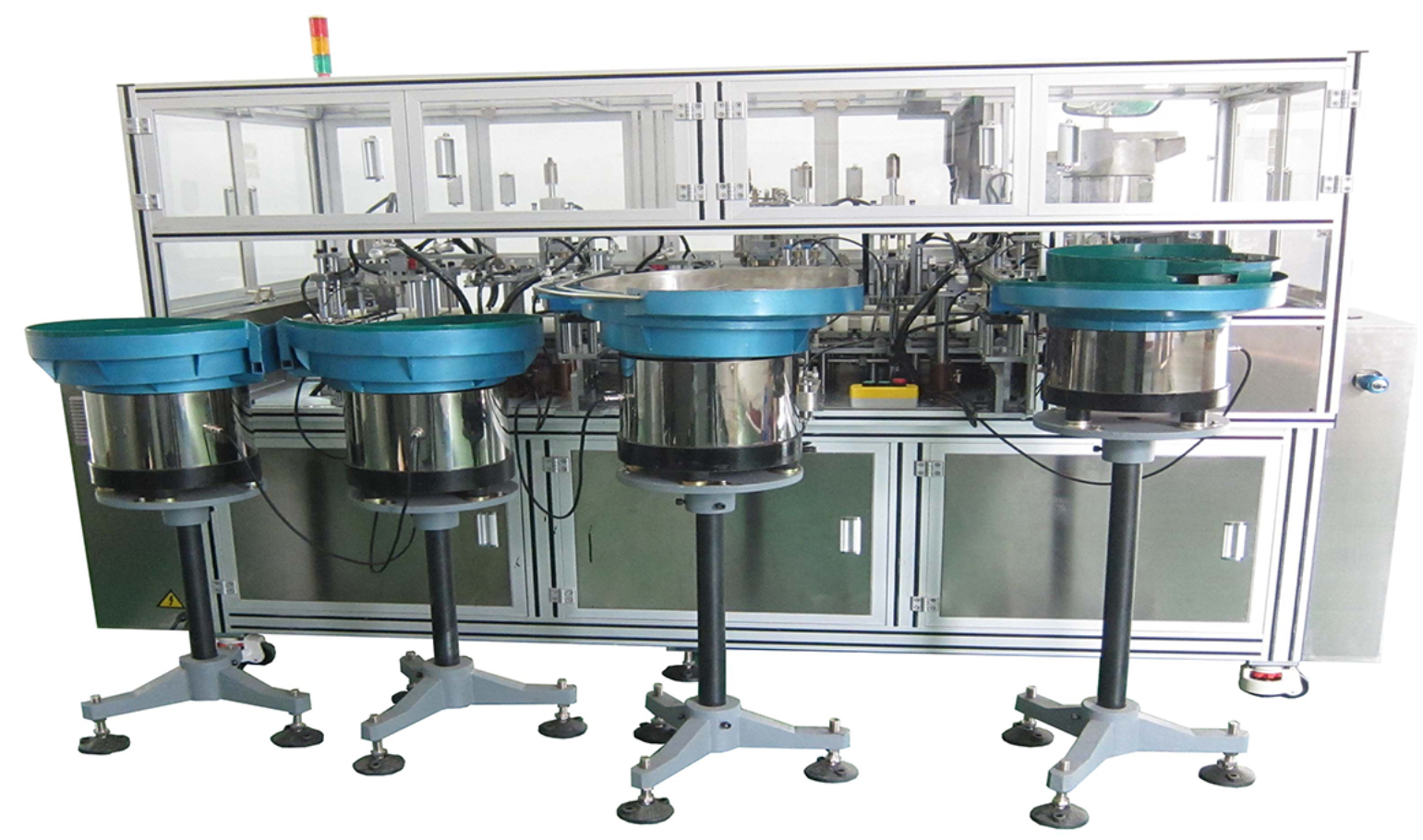

Lotion Pump automatic assembly Machine
Machine structure make from steel S45C.
Intelligent System: High quality PLC system integrated with touch screen and inverter. It is easy to operate and energy saving.
Machine Transmission: Adopted high performance electronic cam transmission system, stabilized and durable.
Feeding System: High performance vibrating bowl feeder
| Machine major component origin list: | ||||||||
|---|---|---|---|---|---|---|---|---|
| No. | Product | Producer | Origin Country | |||||
| 1 | Solenoid valve | Sch | French | |||||
| 2 | Photo sensor/fiber optic | Panic/Keyence | Japan | |||||
| 3 | Main motor | China Taiwan,INOVANCE | China taiwan | |||||
| 4 | PLC | INOVANCE/Mitsu | China/Japan | |||||
| 5 | Relay | Schder/Honey | French/USA | |||||
| 6 | Proximity sensor | Autonics | Korea | |||||
| 7 | Air filter | China taiwan | China taiwan | |||||
| 8 | Cylinder | SMC /Air tac | Japan/China taiwan | |||||
| 9 | Electronic cam | koyo | Japan | |||||
| 10 | Inverter | Shihlin/Delta | China taiwan | |||||
| 11 | Stroke/rod eye | Iko,Misumi | Japan | |||||

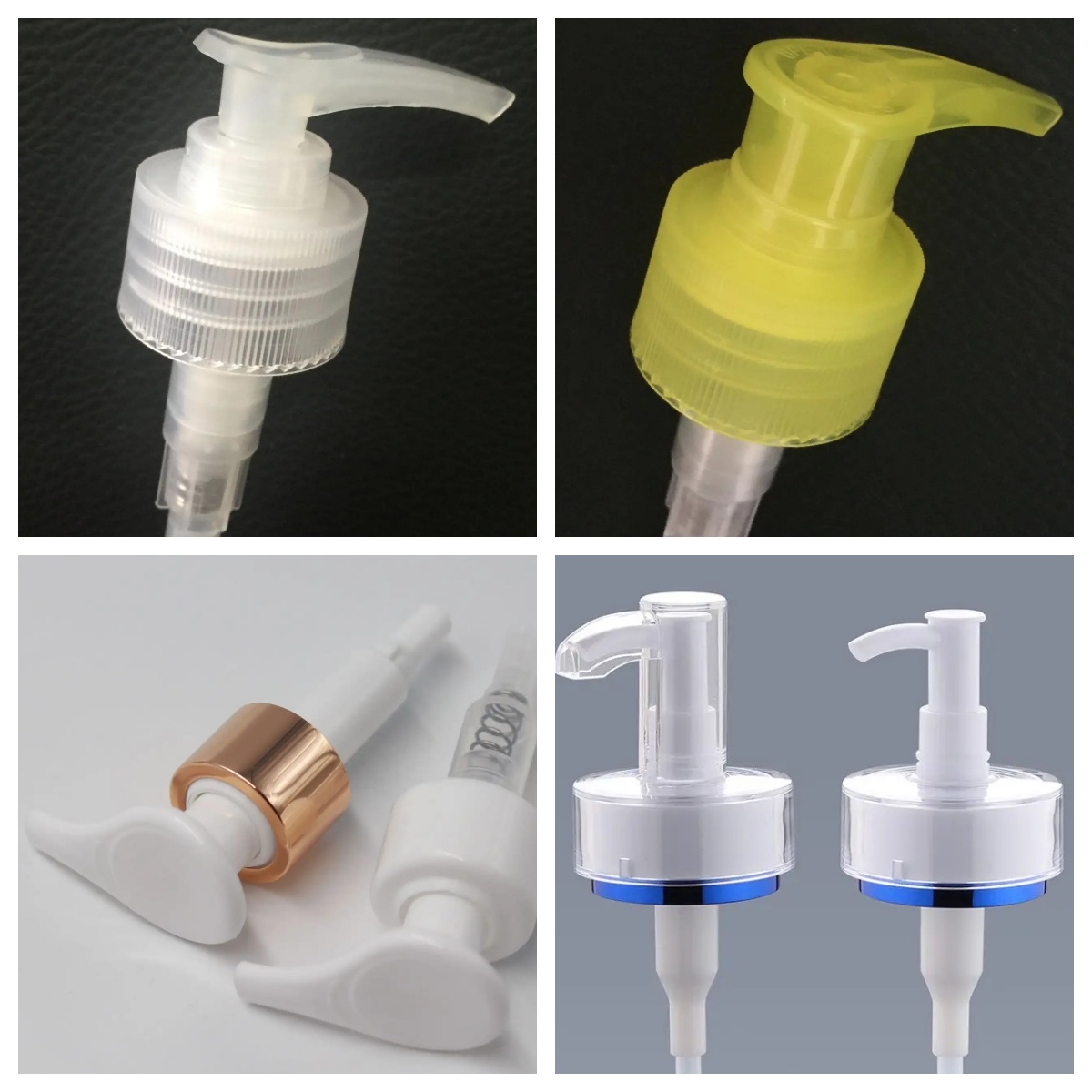

The assembly will auto feeding the house , pump core ,spring ,ball and screw cap ,and automatic through detect the exist and the direction ,then automatic assembly together .
Manufacturing Technique
- house feeding
- house check
- Oil filling
- ball filling and check
- spring filling and check
- Engine feeding and check
- clourse feeding and check
- clourse pressure
- shoulder feeding and
- shoulder check and pressure
- Turn over
- Gasket feeding and check
- Dip tube insert and check
- defect part ejection
- Discharge for the good production
Product Paramenters
| Voltage | 380VAC /50HZ,15A | |||
| Power | 3000W | |||
| Dimension | 4000*2100*1800 mm | |||
| Weight | 2800kg | |||
| Air Pressure | 0.5~0.8MPa | |||
| Operating Speed | 100-120 pcs/min | |||
| Frequency | 50hz |
FAQ
Q: I am interested in your product, can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen: Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/
Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts: lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
