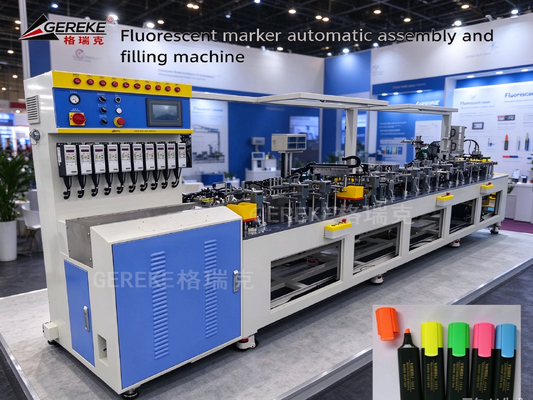

China Fluorescent Highlighter Pen Assembly Machine Manufacturer
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Document | stationery pens automatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | $75000~85000 |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Power | 3000W | Voltage | 380/220 VAC, 50Hz, 15A, 3 Phase |
|---|---|---|---|
| Dimensions | 4200*2100*1800mm | Weight | 2500kg |
| Operating Speed | 50-60 Pcs/min | Air Pressure | 0.5~0.8MPa |
| Lead Time | 90-150days | MOQ | 90-150days |
| Warranty | 1 SET | After-sales Service Provided | One Year Service Machinery Overseas |
| Highlight | Fluorescent Highlighter Pen Assembly Machine,Highlighter Pen Assembly Machine Manufacturer,Pen Assembly Machine China Manufacturer |
||
Product Description
Product Overview

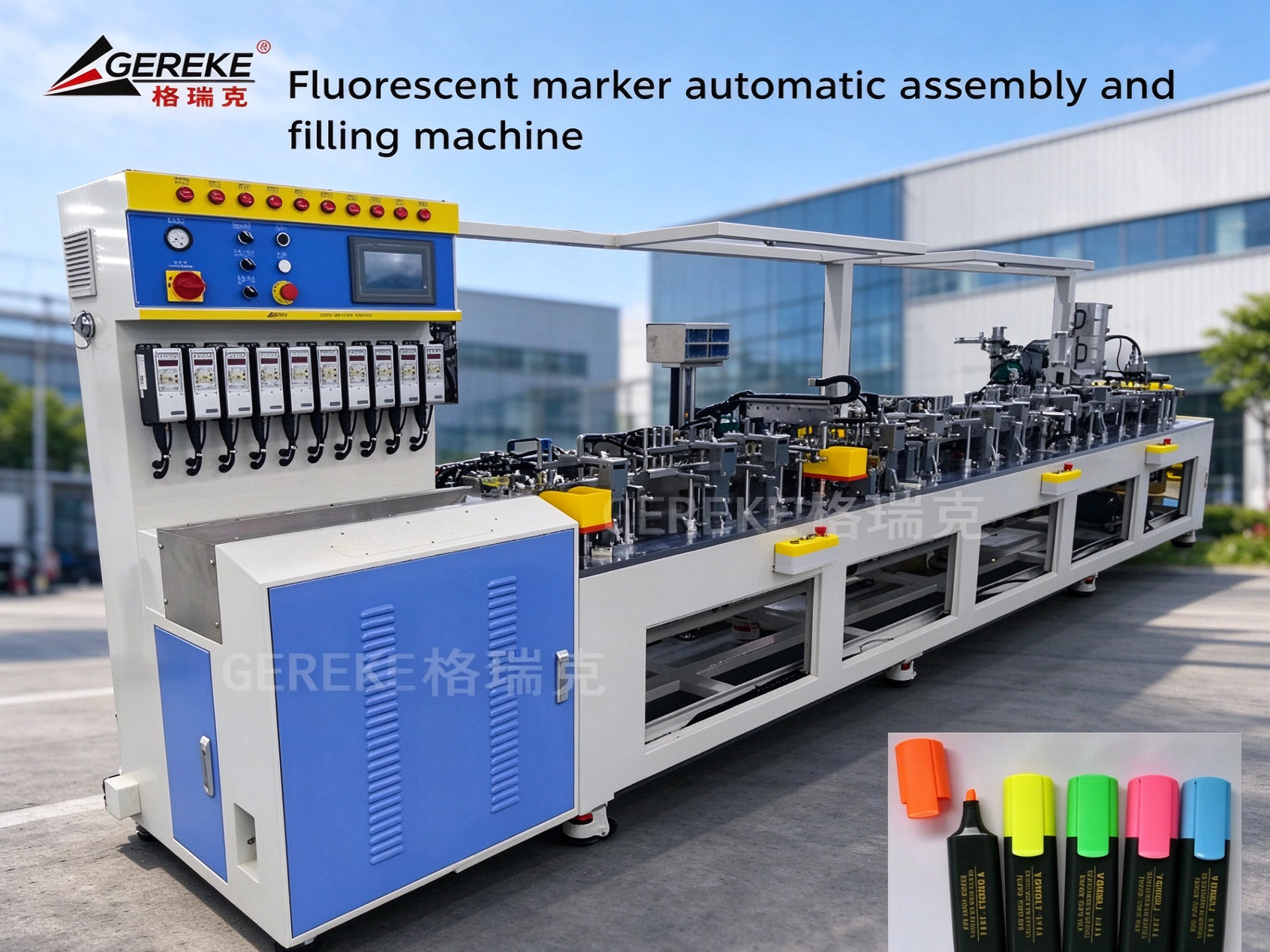

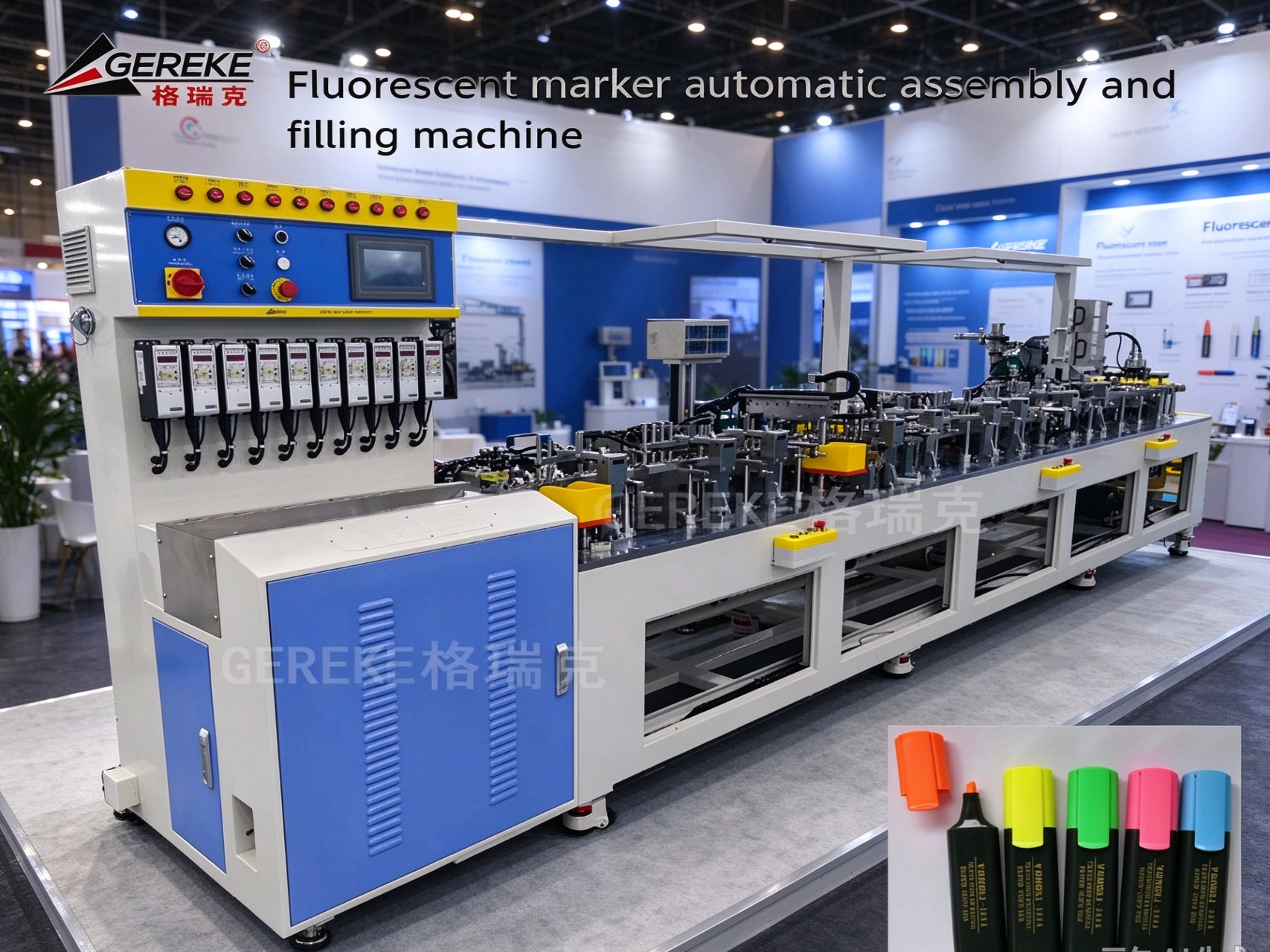

This fluorescent highlighter pen assembly machine is designed for automated, high-efficiency production. The system automatically feeds the barrel, reservoir cone, end plug, and cap, then verifies presence and orientation through integrated detection before assembling all components together.
Manufacturing Process
The assembly sequence is fully automated and monitored at each stage to ensure consistent output quality:
- Barrel feeding
- Barrel check
- End plug fitting
- End plug check
- Orientation
- Reservoir feeding
- Reservoir check
- Ink filling
- Ink check
- Cone fitting
- Cone check
- Cap fitting
- Cap check and pressure test
- Discharge of good production
- Defect part ejection
Product Parameters
| Parameter | Specification |
|---|---|
| Voltage | 380VAC / 50Hz, 15A |
| Power | 3000W |
| Dimension | 4000 × 1500 × 1800 mm |
| Weight | 1800 kg |
| Air Pressure | 0.5–0.8 MPa |
| Operating Speed | 50–60 pcs/min |
| Frequency | 50 Hz |
Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology-driven enterprise that incorporates AI into its medical product range. The company has established a strong team of capable staff who concentrate on their own areas of expertise. Gereke professionally carries out customizations according to user needs. The entire process—from designing to assembling and packaging—is constantly evaluated and improved. Strict and rigorous testing is conducted on the quality and performance of the machinery to ensure internationally advanced standards. Excellence in quality and performance has won the complete trust of many customers.
Customer Photo
Frequently Asked Questions
Q: I am interested in your product. Can you supply it?
A: Yes. We are a professional manufacturer and exporter concerned with the design, development, and production of various special filling machines, assembly machines, packing machines, and more.

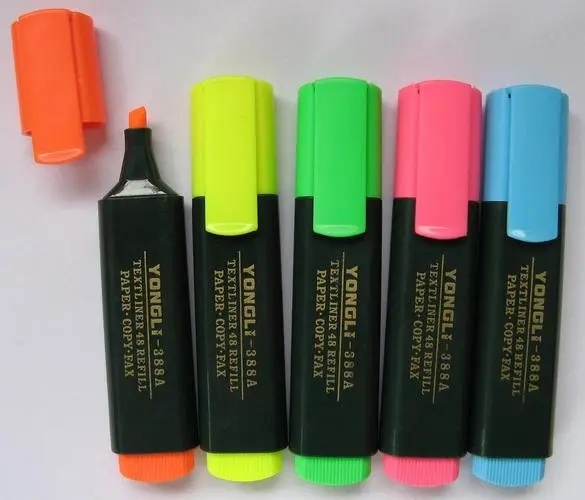

Writing instrument pens we support include: marker pen, ball pen, gel pen, ball pen refill, gel pen refill, sketch pen, watercolor pen, paint pen, retractable ballpoint, highlighter pen, and fluorescent pen.
Medical parts: lateral flow test kit, strip cutting machine, cassette kit, blood lancet, safety pressure-activated lancet, sprayer pump, nasal sprayer pump, and mist sprayer pump.
Cosmetic parts: lipstick tube assembly machine, eyeliner pen, eyebrow pen, and lotion sprayer pump.
Q: What documents do I need to provide?
A: Please provide the following:
Q: What is the lead time?
A: 45–90 days after receiving the advance payment and samples.
Q: How do you ship the product?
A: By sea, by air, or by express.
Q: Do you have CE certification?
A: Yes, we have CE certification.
Q: What documents will you provide?
A: We provide installation manuals, maintenance manuals, and electrical schematic diagrams. For medical machines, we also provide IQ and OQ documentation, plus a spare part list.
Q: What is the material of your machine?
A: Most parts are made of 45# steel. Parts that come into contact with the product are made of stainless steel S304.
Q: What services can we provide?
A: Accepted delivery terms: FOB. Accepted payment currencies: USD, EUR, HKD. Accepted payment types: T/T, Cash. Languages spoken: English, Chinese.
