Socket Automatic Making Machine Switch And Brass Assembly Machine
| Place of Origin | China |
|---|---|
| Brand Name | Gereke |
| Certification | CE ISO90001 |
| Model Number | Y800 |
| Document | stationery pens automatic a...ne.pdf |
| Minimum Order Quantity | 1 set |
| Price | 25000~45000$ |
| Packaging Details | Wooden |
| Delivery Time | 90~150 days |
| Payment Terms | TT |
| Supply Ability | 10 PCS |
Product Details
| Voltage | 380VAC /50HZ, 15A | Power | 1.5 KW |
|---|---|---|---|
| Air Pressure | 0.5~0.8MPa | Operating Speed | 3000-3600 Pcs/hour |
| Lead Time | 90-120days | Weight (kg) | 1800 Kg |
| Dimension | 2.5m X 2.5m X 1.8m | Warranty | One Year |
| After Warranty Service | Service Machinery Overseas | Advantage | High Efficiency |
| Highlight | Socket Automatic Making Machine,Switch And Brass Assembly Machine,Switch Automatic Making Machine |
||
Product Description
Products Description

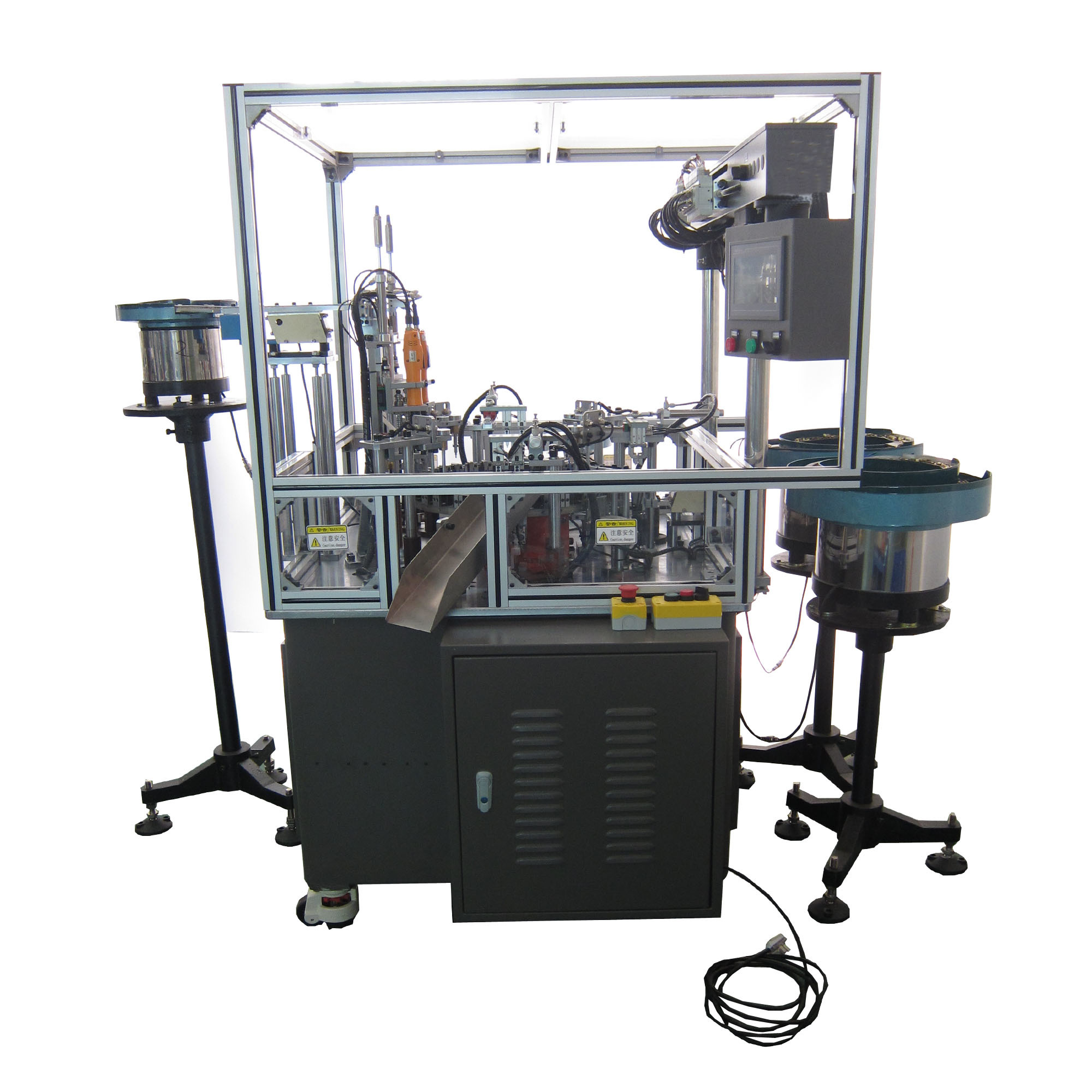

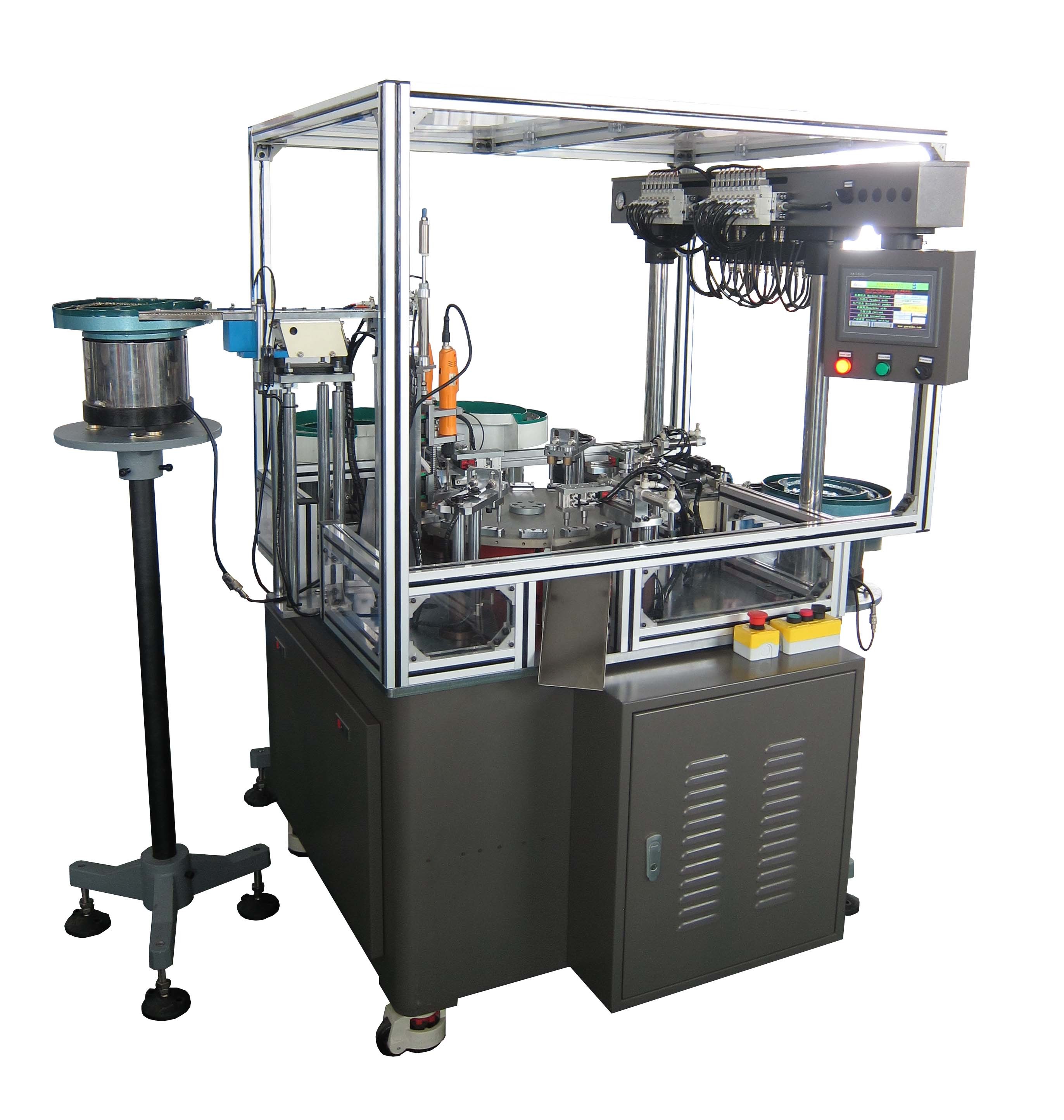

Socket automatic making Machine-assembly machine switch machine brass machine
the assembly machine will auto feeding the shell , brass spring and screw ,and automatic through detect the exist and the direction ,then automatic assembly together .
Manufacturing Technique
- according the samples
Product Paramenters
|
Voltage
|
380VAC /50HZ,15A
|
|
|
|
|
Power
|
3000W
|
|
|
|
|
Dimension
|
3000*1500*1800mm
|
|
|
|
|
Weight
|
1800kg
|
|
|
|
|
Air Pressure
|
0.5~0.8MPa
|
|
|
|
|
Operating Speed
|
60-65 pcs/min
|
|
|
|
|
Frequency
|
50hz
|
|
|
|
Company Profile
Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical product range. We have established a strong team of capable staff who concentrate on their own area of expertise. Gereke carries out customizations professionally according to the user’s needs. The entire process from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and rigorous test on the quality and performance of the machinery to ensure that the internationally advanced standards of the product are there. The excellence in quality and performance has won the complete trust of many customers.
