Reagent Automatic Filling And Assembly Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
GRK-Z800-Y69
Reagent Filling and Assembly Machinea


Z800 reagent filling and assembly machine is equipped with high precision peristaltic pump. The liquid filled is inspected by high resolution camera sensor. Defect parts will be detected and ejected into waste boxes. This is to ensure that finished products are free from problem with ZERO defect.
Caps base, cover and bottles feed by vibration bowl regardless of direction. It will be arranged and commutation automatically by machine mechanism. Finished products will be checked by sensor to ensure all parts are in the right place.
The HMI touch screen displays real production data tracking, system parameters, as well as trouble shooting and parts faulty messages.
The Z800 equipment is designed for high volume production with customized product. The equipment provides high efficiency, consistency, productivity and fully automated for lateral flow diagnostic accessories products.

Key Features

Caps base, cover and bottles feed automatically with vibrator bowls
High precision peristaltic pump with adjustable volume
Liquid filled checked by high precision camera sensor
NC parts will be rejected automatically
HMI touch screen control interface
  • GRK-Z800-Y500

Availability:
Quantity:

Reagent Automatic Filling And Assembly Machine

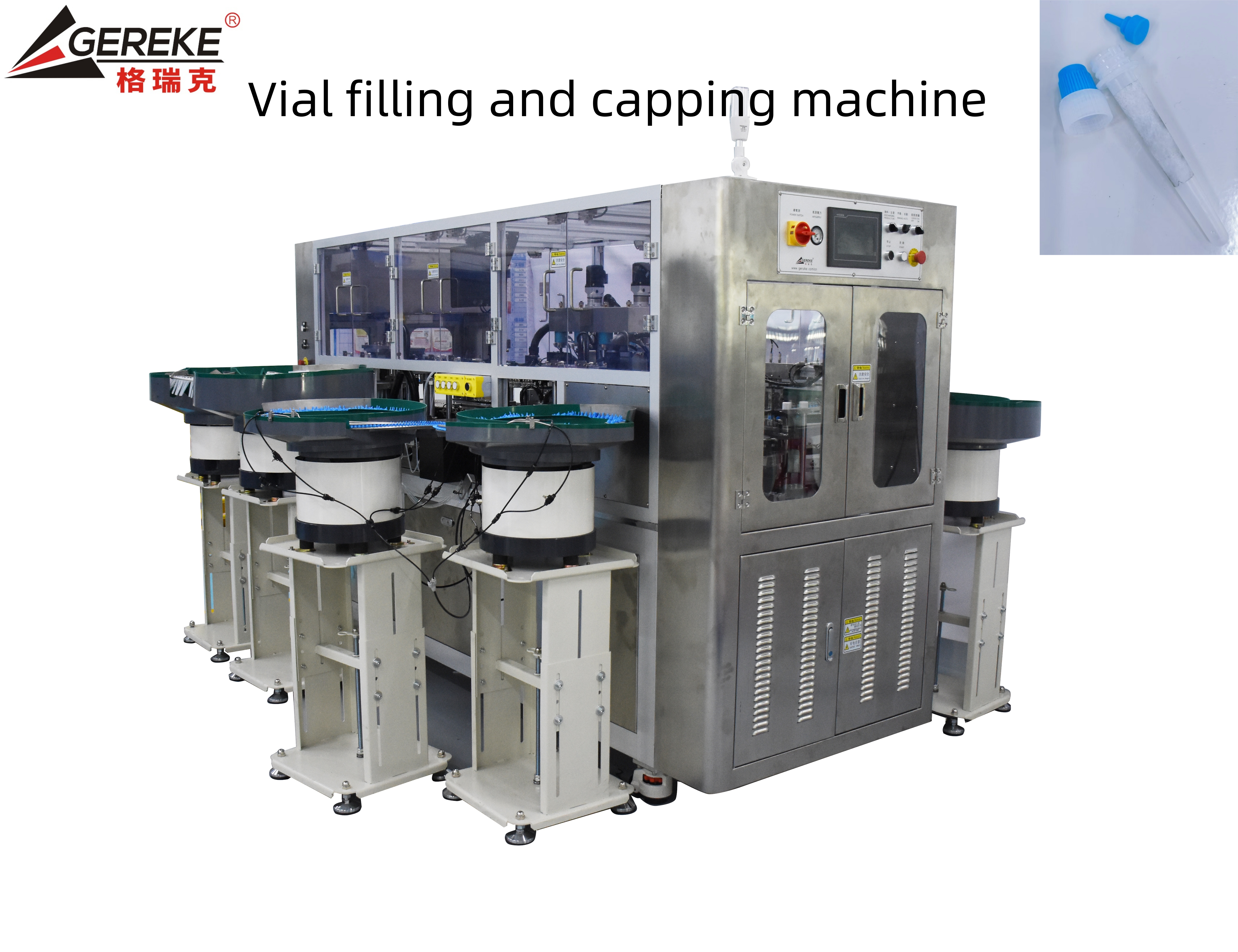

  Vial filling and capping

Machine Parameter

Reagent Automatic Filling And Assembly Machine

Power

220/380volt 50/60Hz 2/3phases

KVA

1.5kw

Operating Rate

60-70pcs/min

Weight

Appro:2000kg

Pneumatic

5-6kgf/cm²

Dimensions

L3500mm×W1400mm×H1800mm

Machine Character and working process:

The machines adopts precision mechanical CAM integral structure.

Intelligent Part:Adopts advanced high performance  PLC  with  a 7.0 -inch color touch screen control, real-time infrared surveillance system, adopts frequency control of motor speed.


Linkage Part:By splitting  system synchronization precision mechanical CAM installed electronic CAM.


Feeding Part:Using automatic vibrating feeder, can effectively guarantee the accuracy of the feed speed and

installation.


Filling Part:Pneumatic piston pump for high precision, the initiative can reverse liquid volume precision

adjustment.

Company information

SHENZHEN GEREKE MACHINERY Co.,LTD is specialized in  designing and manufacturing for  Assembly,Filling and Labeling machines .We are professional on planning solution. We have over 10 years experience for it .


Main Productions:


1,Automatic machines for Stationery. Gel pen Automatic Assembly machine,Ballpoint Assembly,Clip Assembly,Gel pen Refill Assembly,Ball pen refill filling and assembly machine,Correction Fluid Filling machine,Correction Fluid Tip machine,and Automatic Marker pen Assembly machine ,and so on.


2,Medical facility Automatic assembly machine. Rapid test kit assembly machine Blood lancet Automatic assembly machine,Syringe needle automatic assembly machines Nasal/Oral/Mist/Lotion pump sprayer automatic assembly and inspection machine and so on.


3,Automatic machines for Cosmetic. Eyebrow pen Automatic Assembly machine,Lip gloss Automatic Assembly and filling machine and so on.


4,Electrical apparatus element Automatic assembly machines. LED automatic assembly machine,the electrical switch  automatic assembly machine and so on .


In service ,we always insist that "Best quality, High value, Quick supply". About manufacturing,we base on " People-oriented,technology leading".We always in the lead of the stationery market with the good after-sell services and perfect Production mode.


"Customer supreme,sustainable development"is the operation policy.We look forward to establishing a good relationship with domestic and international customers and create bright future.

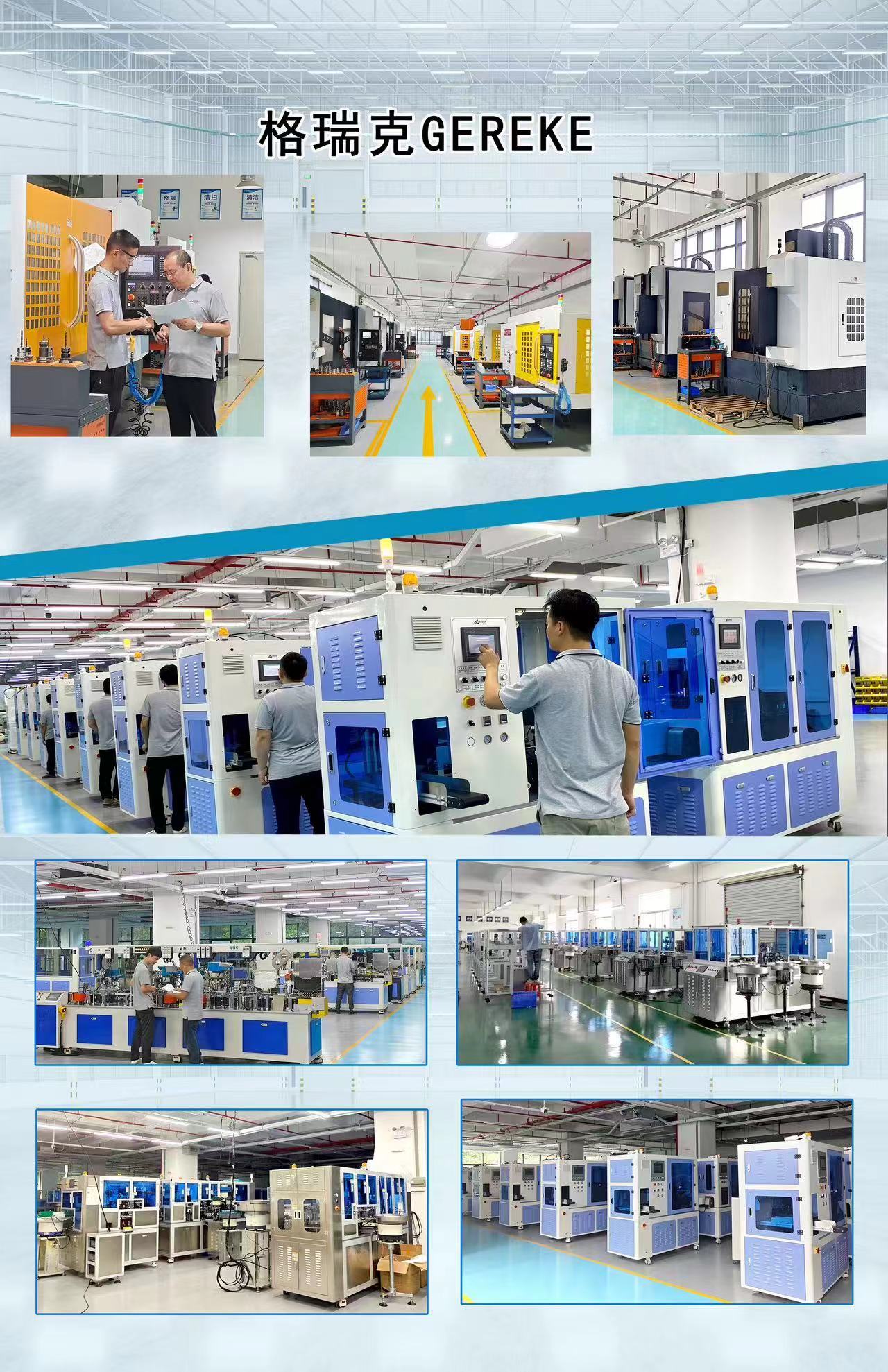

车间





Certificate

C-证书2_2C-证书_1

Our Services

We guarantee to make every effort to meet the buyer's requirement on design and manufacture. Strictly to choose brand new components for manufacturing. We provide warranty   for one year, which include design and assembly problem,components problem. For these problems we will take all the responsibilities. For force majeure cause such as earthquake,fire and other nature disaster we can provide maintenance .

客户1

FAQ

Q: I am interested in your product,can you supply.

A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.

Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/

Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump

Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump

Q: What do I need to provide documents?

A: 1.The material of your product   2.The size of your product and the pattern.   3.The shape of your product.

Q: What is the lead time ?

A: 45~90 days after receiving the advance payment and samples

Q: How do you shipment the product?

A: By sea, by air, by express.

Q:Do you  have the CE certification ?

A:Yes ,we have the  CE certification .

Q:What document will you provide ?

A: Installation manuals/ Maintenance manuals/Electrical schematics diagram

  -For medical machine we will provide  IQ, OQ

  - Spare part list

Q:What is the material of  your machine ?

A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.

Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
 Accepted Payment Currency: USD,EUR,HKD;
 Accepted Payment Type: T/T, Cash;
 Language Spoken: English, Chinese
