Strip Cutting and Packaging Machine

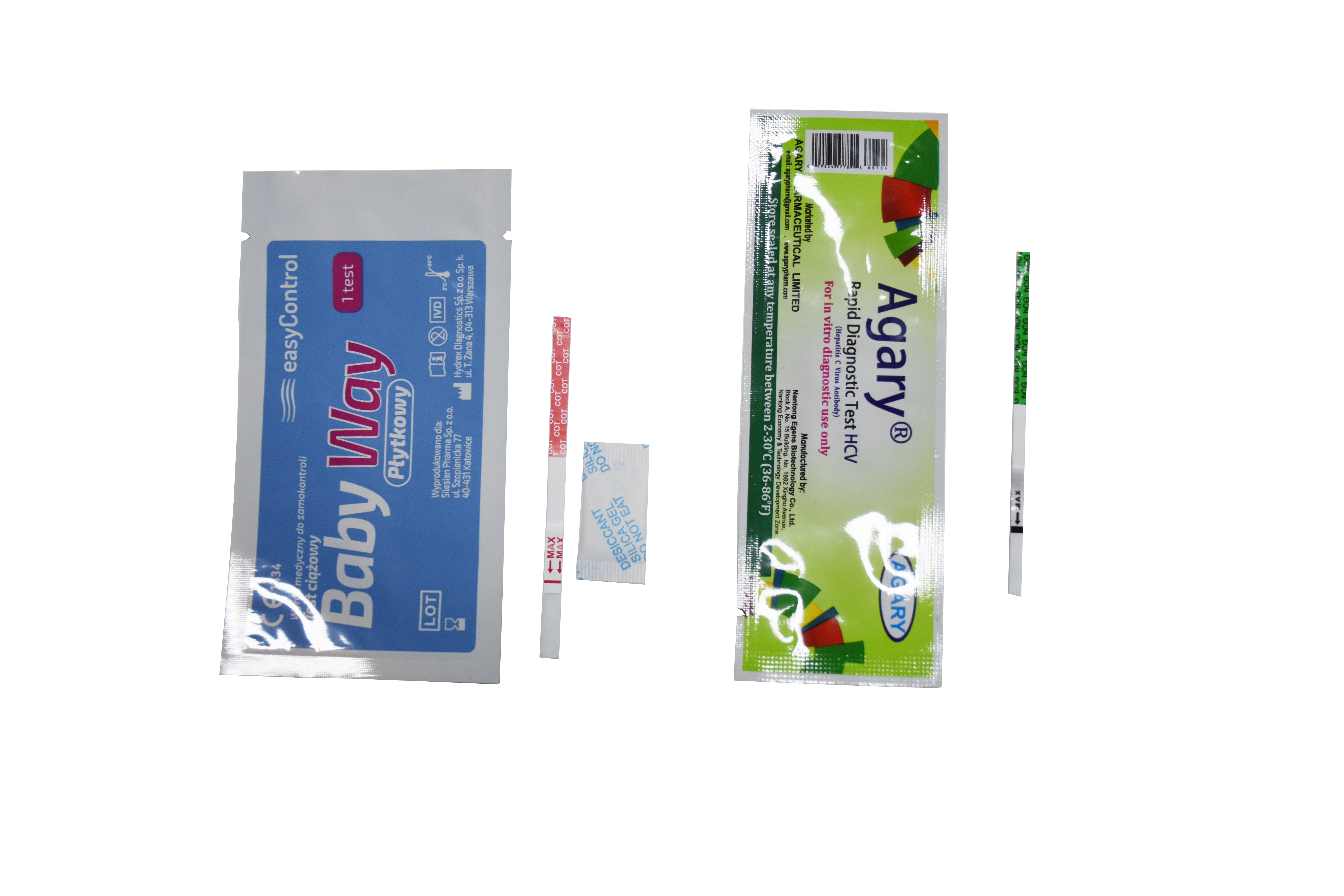

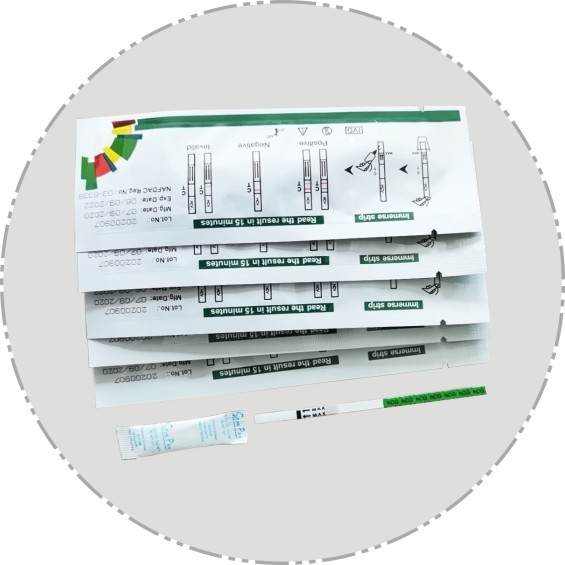

Strip cutting and packaging machine system is designed to meet multi diseases urine tests production requirement with fully automated cutting, packing and inspection purposes.

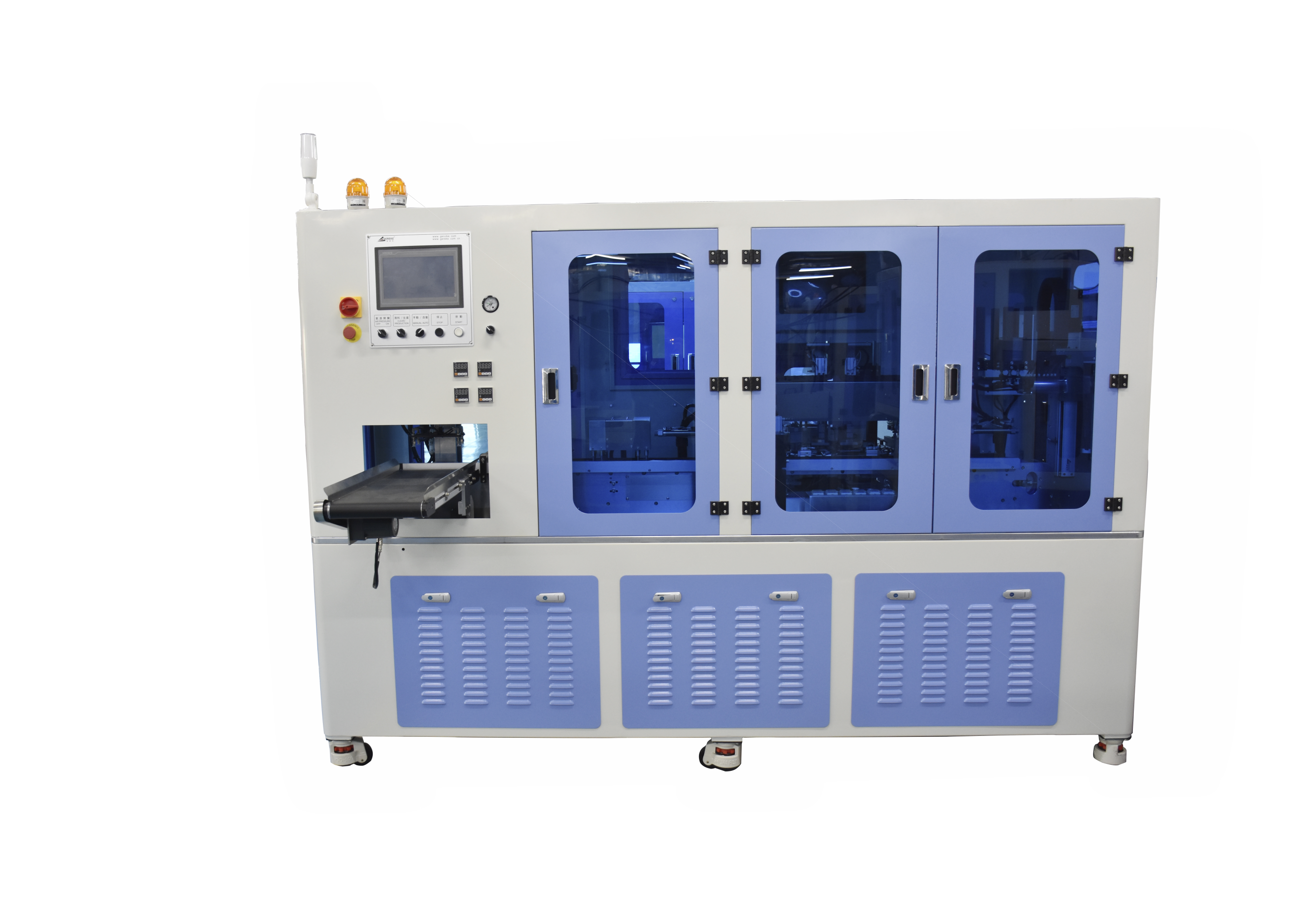

TWLD01 strip cutting and packaging machine is equipped with high precision cutting and placing mechanism. The cut strips on conveyor are inspected by high resolution camera sensor. Defect parts such as strips contamination will be detected and ejected into waste boxes. This is to ensure that finished products are free from problem with ZERO defect.

Desiccants are feed by vibration bowl regardless of direction. It will be arranged and commutation automatically by machine mechanism. Strips and foil bags feed by magazine, finished products will be checked by sensor to ensure all parts are in the right place.
The HMI touch screen displays real production data tracking, system parameters ,as well as trouble shooting and parts faulty messages.

The 100% check on cut strips equipped with one vision monitor displays the inspection images and results in real time. Strips contamination and cut width are verified.

Key Features

Desiccants feed automatically with vibrator bowls
Sheets and foil bags feed automatically with magazine
Strips cut, pick and place automatically
Sheets trim and scrap will be rejected automatically
Strips placement checked by high precision camera sensor
NC parts will be rejected automatically
HMI touch screen control interface
  • GRK-TWLD01
